Multi-function steering wheel switches/buttons, removing and installing: Removing
WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Before beginning repairs on the electrical system
- Obtain anti-theft radio security code if necessary.
- Switch the ignition off.
- Disconnect battery Ground (GND) strap.
- On vehicles equipped with Audi Telematics by OnStar(R), switch-off the emergency (back-up) battery for the Telematic/Telephone Control Module prior to disconnecting vehicle battery. Use VAS 5051 Vehicle Diagnostic, Testing and Information System in mode "Guided Fault Finding". See EMERGENCY BATTERY, SWITCHING OFF/ON .
- After reconnecting vehicle battery, re-code anti-theft radio if necessary, and check operation. Also check operation of clock and power windows according to Repair Manual and/or Owner's Manual.
- After reconnecting vehicle battery on vehicles equipped with Audi Telematics by OnStar(R), switch-on the emergency (back-up) battery for the Telematic/Telephone Control Module. Use VAS 5051 Vehicle Diagnostic, Testing and Information System in mode "Guided Fault Finding". See EMERGENCY BATTERY, SWITCHING OFF/ON .
NOTE:
Further measures after reconnecting the voltage supply: See PROCEDURE AFTER INTERRUPTION OF VOLTAGE SUPPLY
(1.8L), or PROCEDURE FOLLOWING INTERRUPTION OF VOLTAGE SUPPLY
(3.0L).
WARNING:
Special safety precautions apply to vehicles equipped with airbags. Refer to appropriate Air Bag article in Restraints
.
- Unlatch steering column adjustment. Pull steering wheel as far out and up as possible.
- Remove airbag unit
Refer to appropriate Air Bag article in Restraints .
- Carefully flip airbag unit forward.
- Carefully disconnect electrical connections -1- and -2- at airbag unit.
- Remove airbag unit.

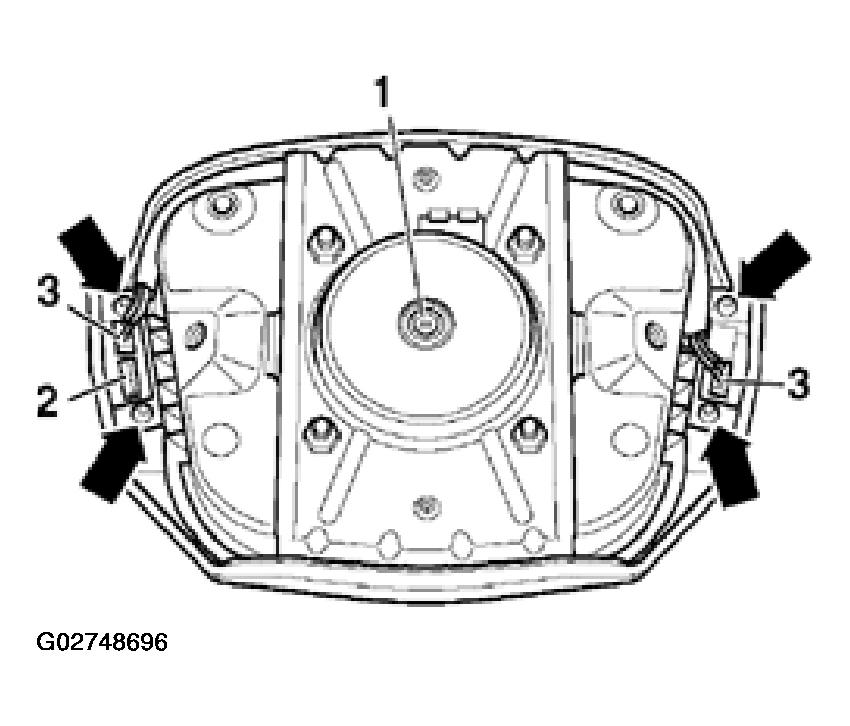

- Disconnect applicable electrical connections -3- and remove screws -arrows- at desired switch.
- Remove switch toward front.

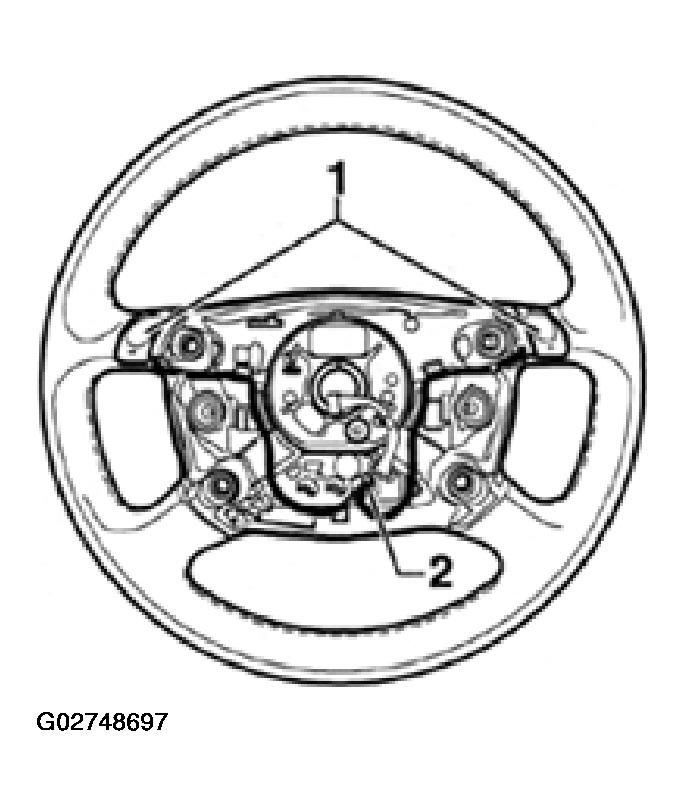

- Where applicable, remove Tiptronic switch -1- by first disconnecting electrical connection -2-.
- Press desired switch assembly -1- towards center of steering wheel to remove.
