Front Axle Toe, Adjusting

-- Loosen lock nut -A-.

-- Adjust toe on left and right-hand wheels with hex -B-.

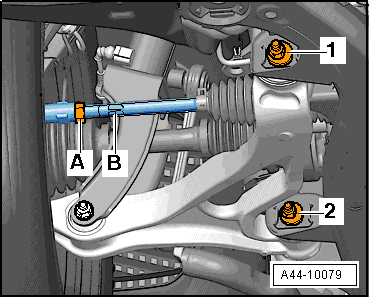

Fig 1: Identifying Connections -1 And 2-

Courtesy of AUDI OF AMERICA, LLC

Twisted boots wear out quickly.

-- Tighten lock nut -A-, refer to -Item 2- STEERING GEAR, SERVICING .
