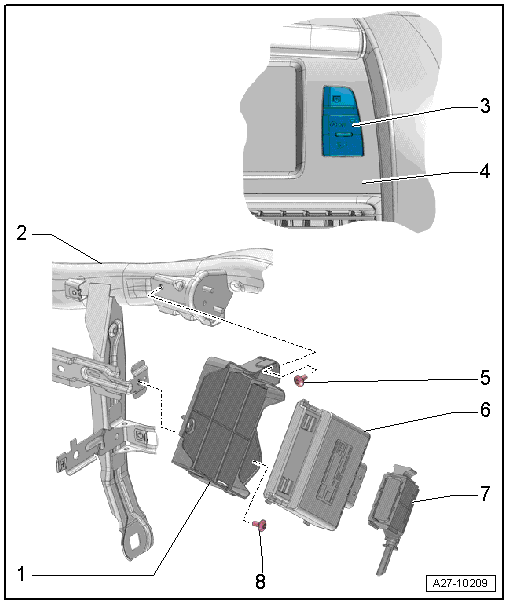

Overview - Start/Stop System
- Retainer
- For the Voltage Stabilizer -J532-.
- Central Tube
- For the instrument panel.
- Start/Stop Mode Button -E693-
- Removing and Installing, refer to Glove Compartment Button -E316-, Display Unit Button -E506-, -E536-, AND Start/Stop Mode Button -E693-, REMOVING AND INSTALLING .
- Instrument Cluster Trim
- Bolt
- 4.5 Nm
- Voltage Stabilizer -J532-
- Removing and Installing, refer to Voltage Stabilizer -J532-, REMOVING AND INSTALLING .
- Connector
- Bolt
- 4.5 Nm
