Speed Sensor On Rear Axle, Removing And Installing: Removing

-- Raise the vehicle.

-- Separate speed sensor and speed sensor wiring connector -1-.

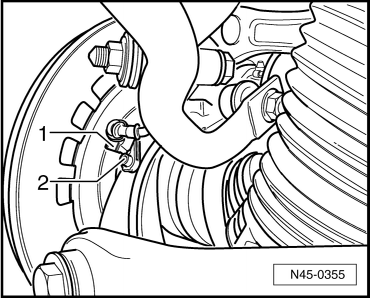

Fig 1: ABS Speed Sensor On Rear Axle, Removing And Installing

Courtesy of AUDI OF AMERICA, LLC

-- Remove bolt -2- from the wheel bearing housing.

-- Remove the ABS speed sensor from wheel bearing housing.
