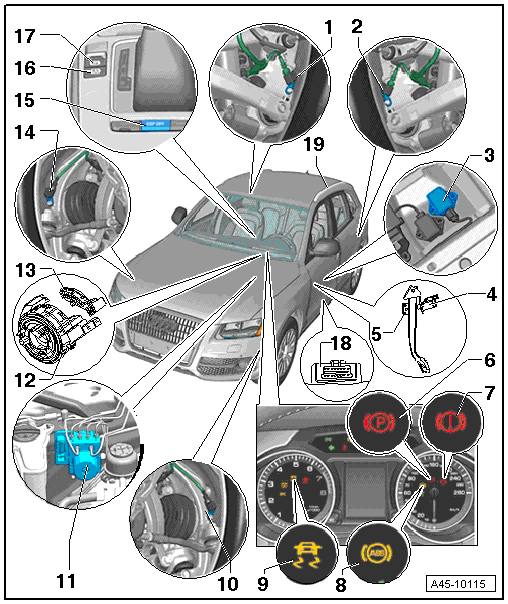

Component Location Overview - Abs/Esp
- Right Rear ABS Wheel Speed Sensor -G44-
- can be checked in the "Guided Fault Finding " using the Vehicle Diagnostic Tester
- Refer to RIGHT/LEFT REAR ABS WHEEL SPEED SENSOR -G44- / -G46-, REMOVING AND INSTALLING .
- Left Rear ABS Wheel Speed Sensor -G46-
- can be checked in the "Guided Fault Finding " using the Vehicle Diagnostic Tester
- Refer to RIGHT/LEFT REAR ABS WHEEL SPEED SENSOR -G44- / -G46-, REMOVING AND INSTALLING
- ESP Sensor Unit -G419-
- Installed location: under the left front seat
- Combined Transverse Acceleration Sensor -G200-, Rotation Rate Sensor -G202- and Longitudinal Acceleration Sensor -G251-
- can be checked in the "Guided Fault Finding " using the Vehicle Diagnostic Tester
- Refer to ESP Sensor Unit -G419-, REMOVING AND INSTALLING
- Observe installation instructions
- Check the arrow in the direction of travel when installing
- 9 Nm
- Brake Lamp Switch -F-
- Installed location: on the brake pedal
- Refer to BRAKE LAMP SWITCH, REMOVING AND INSTALLING
- Cannot be reused after removal.
- Brake Pedal
- Removing and installing
- Electromechanical Parking Brake Indicator Lamp --
- Component location in Instrument Cluster Control Module -J285-.
- lights up when the parking brake is engaged and the ignition is switched on,
- lights up for approximately 30 seconds when the parking brake is engaged and the ignition is switched off
- blinks after engaging the parking brake if the brake pressure is not sufficient to prevent the vehicle from rolling.NOTE:
The indicator light must go out when the parking brake is released.
- Brake System Indicator Lamp --
- Component location in Instrument Cluster Control Module -J285-.
- Turns on with the ABS indicator lamp when the ABS system malfunctions
- blinks when the brake fluid is too low
- Blinks when there is a malfunction in the brake system
The malfunction is indicated more precisely when the "SET button" in the instrument cluster is pressed.
- ABS Indicator Lamp -K47-
The indicator lamp monitors the ABS and the Electronic Differential Lock (EDL).
- Component location in Instrument Cluster Control Module -J285-.
- lights up for several seconds when ignition is switched on and goes out after an automatic ABS system self-check if there are no malfunctions in the ABS system.
- There is an ABS malfunction if the indicator light:
- does not light up when ignition is switched on,
- does not go out after a few seconds,
- lights up while driving.
- The vehicle can be stopped with the standard brake system. However, a change in braking behavior should be checked.
The Electronic Differential Lock (EDL) and ABS work together. The ABS indicator light lights up when the EDL malfunctions.
- ASR/ESP Indicator Lamp -K155-
- Component location in Instrument Cluster Control Module -J285-.
- blinks when driving if ESP/ASR engages regularly.
- comes on when ignition is switched on and goes out after a short self-check.
- comes on if there is an ESP system malfunction.
- comes on if there is an ABS system malfunction because ESP and ABS work together.
- comes on when ESP/ASR is switched off.
- comes on during sensor programming if:
- the battery was disconnected and connected,
- vehicle was started with jump start,
- the battery is too weak.
- after the sensor programming procedure, the ESP light goes out after driving a short distance.
- Left Front ABS Wheel Speed Sensor -G47-
- can be checked in the "Guided Fault Finding " using the Vehicle Diagnostic Tester
- Refer to RIGHT/LEFT FRONT ABS WHEEL SPEED SENSOR -G45- / -G47-, REMOVING AND INSTALLING
- ABS Hydraulic Unit -N55- with ABS Control Module -J104-
- Return ring
- Installed location: installed on the steering column with the slip ring
- Steering Column Electronics Control Module -J527-
- With Airbag Spiral Spring/Return Spring with Slip Ring -F138- and Steering Angle Sensor -G85-
- Removing and installing, refer to Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING .
- Right Front ABS Wheel Speed Sensor -G45-
- ASR/ESP Button -E256-
- Switches the ESP/ASR off and on
- The installation location depends on the model, refer to Fig 2
- -AUTO HOLD- Button -E540-
- Located in the center console
- Refer to FUNCTION DESCRIPTION - AUTO HOLD
- Refer to Electromechanical Parking Brake Button -E538- / -AUTO HOLD- Button -E540-, REMOVING AND INSTALLING .
- Electromechanical Parking Brake Button -E538-
- Located in the center console
- Refer Electromechanical Parking Brake Button -E538- / -AUTO HOLD- Button -E540-, REMOVING AND INSTALLING .
- Diagnostic connection
- Installed location: driver side footwell cover
- Roof Rack Recognition Sensor -G625-NOTE:
The Roof Rack Recognition Sensor -G625- is always installed in the left roof railing on both LHD and RHD vehicles.
The sensor cannot be replaced by itself. It is part of the left roof railing.
- Removing and installing, refer to ROOF RAILING, REMOVING AND INSTALLING .

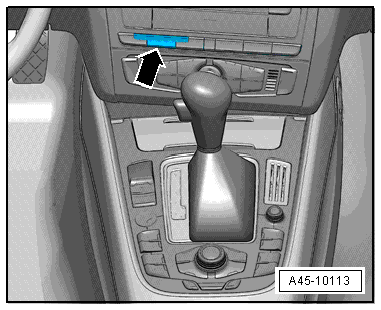

The switch component location is dependent on the model: Vehicle with MMI, ESP switch -arrow-.
