Engine Control Module (ECM) Connector End View (J623, T94, T60)

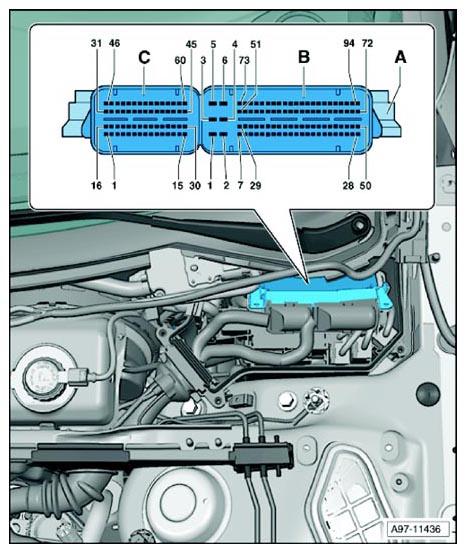

Fig 1: Engine Control Module (ECM) Connector End View (J623, T94, T60)

Courtesy of AUDI OF AMERICA, LLC

NOTE:

• Illustration shows models with left-hand drive.
• Illustration for models with right-hand drive => page 4  .

A	Engine Control Module (ECM) -J623-
B	94-Pin Connector -T94-
C	60-Pin Connector -T60-

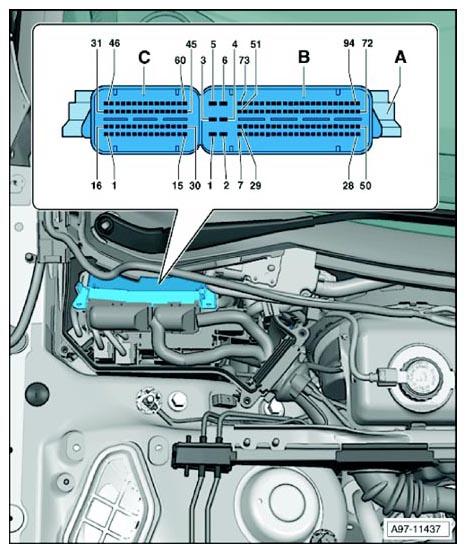

Fig 1: Engine Control Module (ECM) Connector End View (J623, T94, T60)

Courtesy of AUDI OF AMERICA, LLC

NOTE:

• Illustration shows models with right-hand drive.
• Illustration for models with left-hand drive => page 2  .

A	Engine Control Module (ECM) -J623-
B	94-Pin Connector -T94-
C	60-Pin Connector -T60-
