Engine Control Module (ECM) Connector End View (J623, T91, T105)

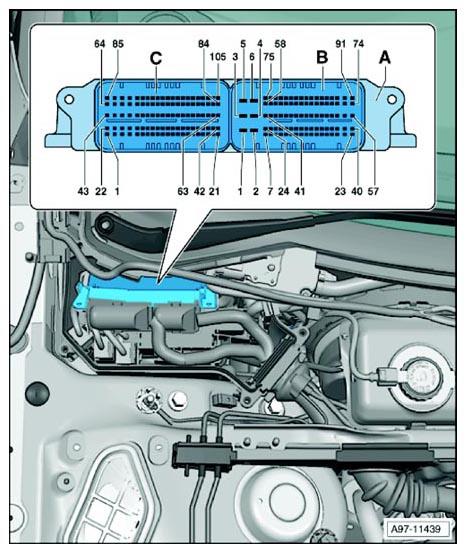

Fig 1: Engine Control Module (ECM) Connector End View (J623, T91, T105)

Courtesy of AUDI OF AMERICA, LLC

NOTE:

• Illustration shows models with left-hand drive.
• Illustration for models with right-hand drive => page 7  .

A	Engine Control Module (ECM) -J623-
B	91-Pin Connector -T91-
C	105-Pin Connector -T105-

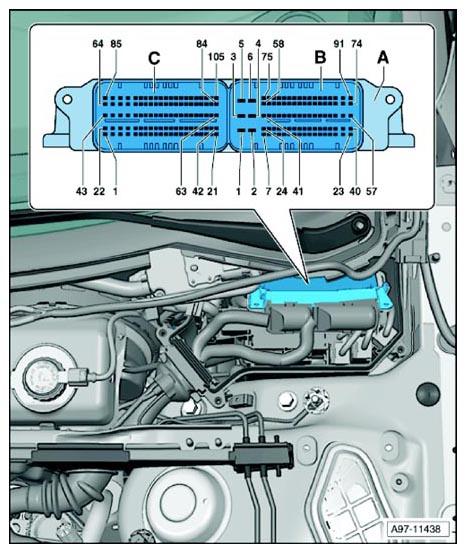

Fig 1: Engine Control Module (ECM) Connector End View (J623, T91, T105)

Courtesy of AUDI OF AMERICA, LLC

NOTE:

• Illustration shows models with right-hand drive.
• Illustration for models with left-hand drive => page 5  .

A	Engine Control Module (ECM) -J623-
B	91-Pin Connector -T91-
C	105-Pin Connector -T105-
