Electronic Damping Control Module Connector End View (J250, T47a)

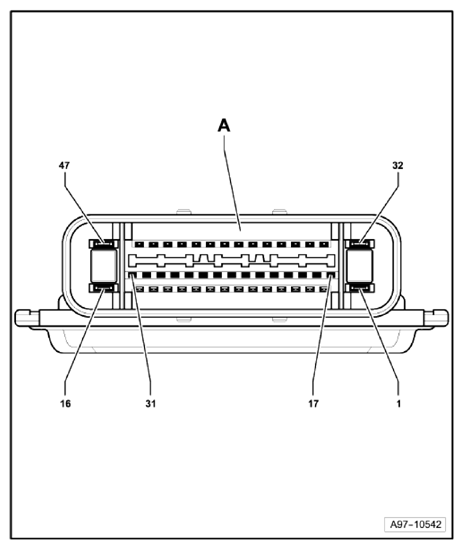

Fig 1: Electronic Damping Control Module Connector End View (J250, T47a)
G10359946Courtesy of AUDI OF AMERICA, LLC
A Electronic Damping Control Module -J250- Connector
  47-Pin Connector -T47a-
