ABS Control Module Connector End View (J104, T38a)

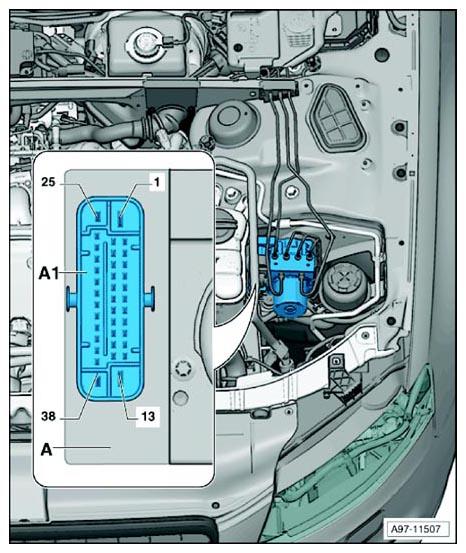

Fig 1: ABS Control Module Connector End View (J104, T38a)

G10359938

Courtesy of AUDI OF AMERICA, LLC

A	ABS Control Module -J104-
A1	38-Pin Connector -T38a-
