Component Location Overview - Sound System, Basic/Standard

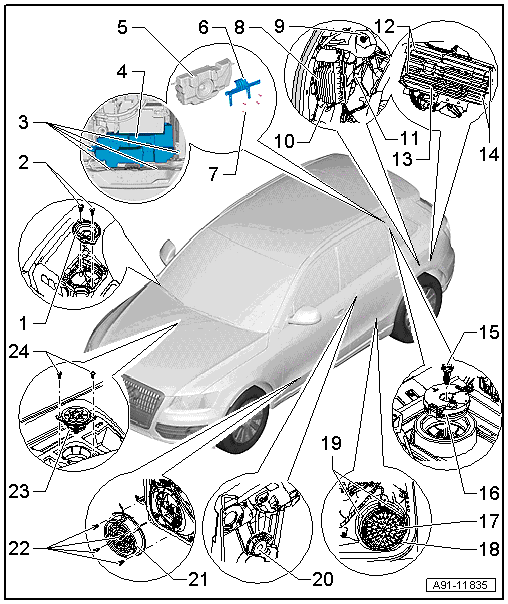

Fig 1: Sound System Components Location

Courtesy of AUDI OF AMERICA, LLC

1. Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-
   • Removing and installing, refer to FRONT TREBLE SPEAKER, REMOVING AND INSTALLING .
2. Bolt
   • 1 Nm
3. Bolt
   • 5 Nm
4. Subwoofer in Rear Shelf -R157- (High Voltage Vehicle)
   • Removing and Installing, High Voltage Vehicle, refer to Subwoofer in Rear Shelf -R157-, REMOVING AND INSTALLING, HIGH VOLTAGE VEHICLE
5. Subwoofer in Rear Shelf -R157- (High Voltage Vehicle)
6. Support (High Voltage Vehicle)
7. Bolt
   • 2 Nm
8. Digital Sound System Control Module -J525-
   • Connector Assignment (CAN), refer to SOUND SYSTEM CONNECTOR ASSIGNMENTS STANDARD, CAN .
   • CAN, Removing and Installing, refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, CAN
   • MMI, Removing and Installing, refer to Digital Sound System Control Module -J525-, REMOVING AND INSTALLING, MMI .
9. Nut
   • 3 Nm
10. Nut
    • 3 Nm
11. Nut
    • 3 Nm
12. Bolt
    • 3.5 Nm
13. Digital Sound System Control Module -J525-
14. Bolt
    • 3.5 Nm
15. Bolt
    • 2 Nm
16. Subwoofer in Rear Shelf -R157-
    • Removing and installing, refer to Subwoofer In Rear Shelf -R157-, REMOVING AND INSTALLING .
17. Left Rear Mid-Bass Speaker -R159- /Right Rear Mid-Bass Speaker -R160-
    • Removing and installing, refer to REAR MID-BASS SPEAKER, REMOVING AND INSTALLING .
18. Bolt
    • 3 Nm
19. Bolt
    • 3 Nm
20. Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-
    • Removing and installing, refer to LEFT/RIGHT REAR TREBLE SPEAKER -R14- / -R16-, REMOVING AND INSTALLING .
21. Left Front Mid-Bass Speaker -R101- /Right Front Mid-Bass Speaker -R102-
    • Removing and installing, refer to FRONT MID-BASS SPEAKER AND FRONT BASS SPEAKER, REMOVING AND INSTALLING .
22. Bolt
    • 3 Nm
23. Center Mid-Treble Speaker -R158-
    • Removing and installing, refer to Center Mid-Treble Speaker -R158- .
24. Bolt
    • 1 Nm
