Rear Final Drive Identification: Notes

The 0AR rear final drive unit is used with the following transmissions:

6-Speed Manual Transmission 02X
6-Speed Manual Transmission 0A3
6-Speed Automatic Transmission 09E AWD
6-Speed Automatic Transmission 09L AWD

Data Location on Rear Final Drive

Final drive 0AR -arrow 1-

Code and production date -arrow 2-

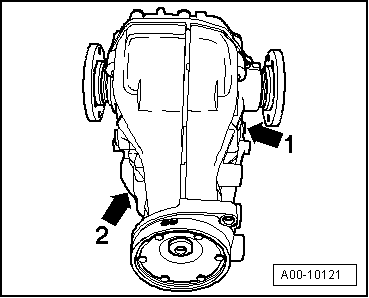

Fig 1: Final Drive 0AR, Identification And Date Of Construction Location

Courtesy of AUDI OF AMERICA, LLC

Final Drive 0AR -arrow-

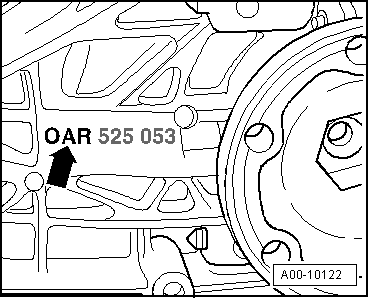

Fig 2: Final Drive Code Letters And Date Of Construction

Courtesy of AUDI OF AMERICA, LLC

Rear Final Drive Code Letters and Build Date

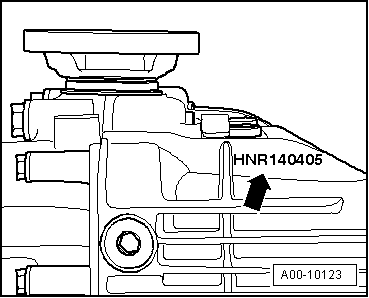

Fig 3: Locating Code Letters And Date Of Manufacture For Rear Final Drive

Courtesy of AUDI OF AMERICA, LLC

Example:	HNR	14	04	05
	I	I	I	I
	Code letters	Day	Month	Production year -2005-

Additional data can be ignored.

NOTE:

When installing a new rear final drive unit, the final drive code, the PR number and the vehicle engine code must be verified, refer to parts. This is the only to assure the correct allocation.
