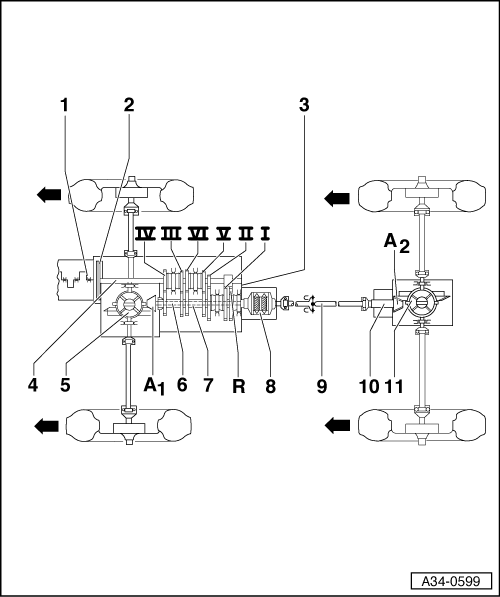

Overview - Powertrain
- Shown with the 6-Speed Manual Transmission 0A3 AWD.
Name
NOTE:
Arrows point in the direction of travel
- Engine
- Clutch
- Variable-Speed Transmission
- Driveshaft (main shaft)
- Front Differential
- Front Pinion (output shaft)
- Hollow Shaft
- Torque Differential
- Driveshaft
- Rear Pinion
- Rear Differential
Ratio
NOTE:
Arrows point in the direction of travel
- I - 1st Gear
- II - 2nd Gear
- III - 3rd Gear
- IV - 4th Gear
- V - 5th Gear
- VI - 6th Gear
- R - Reverse Gear
- A1 - Front Final Drive
- A2 - Rear Final Drive
