Special Tools

Special tools and workshop equipment required

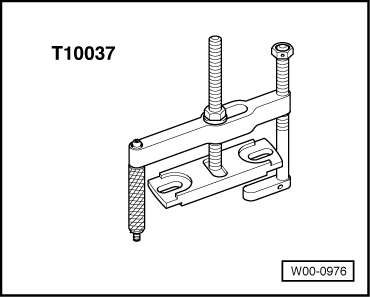

Puller - Flanged Shaft T10037

Fig 1: Puller - Flanged Shaft T10037
Courtesy of AUDI OF AMERICA, LLC
Counterhold - Kit - Multiple Use T10172 with Counterhold - Kit - Adapters 5 T10172/5

Fig 2: Counter-Holder Tool T10172 And Adapters 5 T10172/5
Courtesy of AUDI OF AMERICA, LLC
Puller - Crankshaft/Power Steering Seal T20143

Fig 3: Puller - Crankshaft/Power Steering Seal T20143
Courtesy of AUDI OF AMERICA, LLC

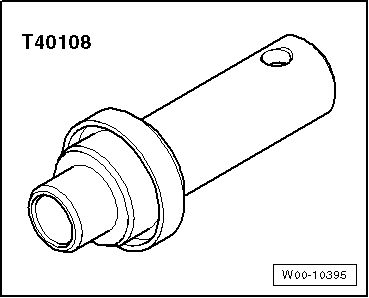

Seal Installer - Flange Shaft T40108

Fig 4: Seal Installer - Flange Shaft T40108
Courtesy of AUDI OF AMERICA, LLC

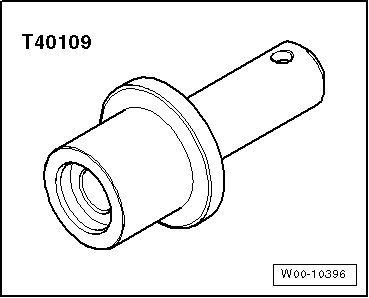

Seal Installer - Driveshaft Flange T40109

Fig 5: Seal Installer - Driveshaft Flange T40109
Courtesy of AUDI OF AMERICA, LLC

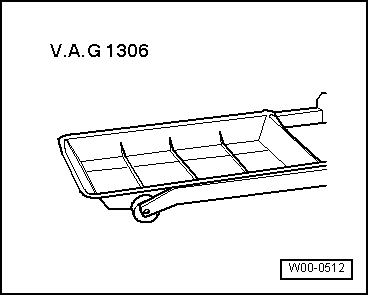

Drip Tray VAG1306

Fig 6: Drip Tray VAG1306
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 5-50Nm VAG1331

Fig 7: Torque Wrench 5-50Nm VAG1331
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 40-200Nm VAG1332

Fig 8: Identifying Torque Wrench 40-200 Nm VAG 1332
Courtesy of AUDI OF AMERICA, LLC
Engine/Gearbox Jack VAG1383A with Engine/Gearbox Jack - Pin VAG1359/2

Fig 9: Engine & Transmission Jack VAG 1383 A
Courtesy of AUDI OF AMERICA, LLC
Bearing/Bushing Installer - Multiple Use VW295

Fig 10: Bearing/Bushing Installer - Multiple Use VW295
Courtesy of AUDI OF AMERICA, LLC

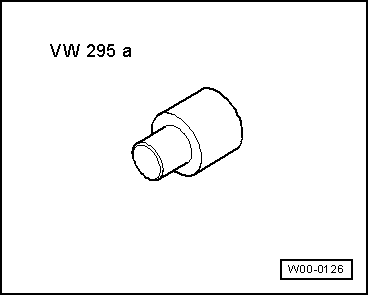

Bearing/Bushing Installer - Multiple Use VW295A

Fig 11: Bearing/Bushing Installer - Multiple Use VW295A
Courtesy of AUDI OF AMERICA, LLC
Dial Gauge Holder VW387

Fig 12: Dial Gauge Holder VW387
Courtesy of AUDI OF AMERICA, LLC

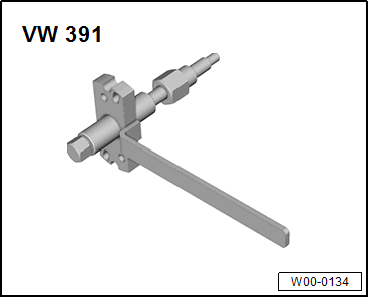

Puller - Multiple Use VW391

Fig 13: Puller - Multiple Use VW391
Courtesy of AUDI OF AMERICA, LLC

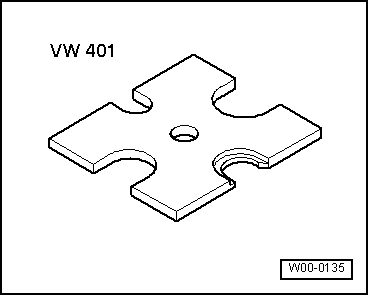

Press Plate VW401

Fig 14: Press Plate VW401
Courtesy of AUDI OF AMERICA, LLC
Press Plate VW401

Fig 15: Press Plate VW401
Courtesy of AUDI OF AMERICA, LLC

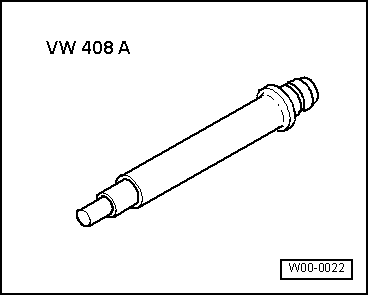

Press Piece - Rod VW408A

Fig 16: Press Piece - Rod VW408A
Courtesy of AUDI OF AMERICA, LLC

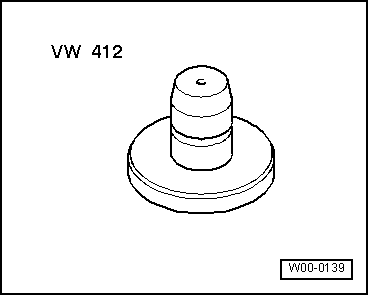

Press Piece - Multiple Use VW412

Fig 17: Press Piece - Multiple Use VW412
Courtesy of AUDI OF AMERICA, LLC

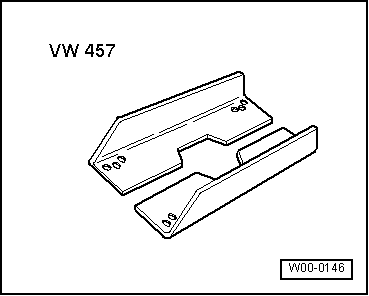

Support Channels VW457

Fig 18: Support Channels VW457
Courtesy of AUDI OF AMERICA, LLC
Slide Hammer Set - Adapter 40 VW771/40 from the Slide Hammer Set VW771

Fig 19: Slide Hammer Set - Adapter 40 VW771/40
Courtesy of AUDI OF AMERICA, LLC
-3- Separating tool 22 to 75 mm, such as Puller - Kukko Quick Action Separating Tool - 12-75mm17/1

Fig 20: Kukko Puller
Courtesy of AUDI OF AMERICA, LLC
-3- Puller - Quick Action Separating Tool - 22-115mm, such as Puller - Kukko Quick Action Separating Tool - 22-115mm17/2

Fig 21: Identifying Kukko Puller
Courtesy of AUDI OF AMERICA, LLC
Pry lever 80-200

Fig 22: Pry lever 80-200
Courtesy of AUDI OF AMERICA, LLC

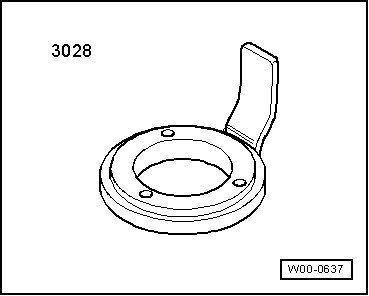

Retainer - Drive Flange 3028

Fig 23: Retainer 3028
Courtesy of AUDI OF AMERICA, LLC

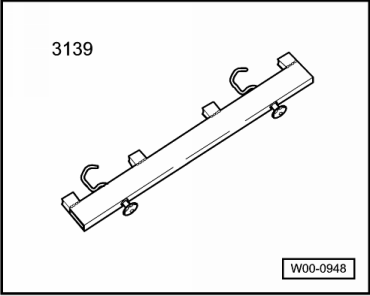

Driveshaft Alignment Fixture 3139

Fig 24: Driveshaft Alignment Fixture 3139
Courtesy of AUDI OF AMERICA, LLC

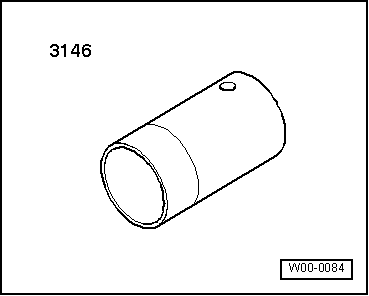

Press Piece - Lower Ball Joint 3146

Fig 25: Press Piece - Lower Ball Joint 3146
Courtesy of AUDI OF AMERICA, LLC
Retainer - Drive Flange 3028

Fig 26: Retainer - Drive Flange 3028
Courtesy of AUDI OF AMERICA, LLC
