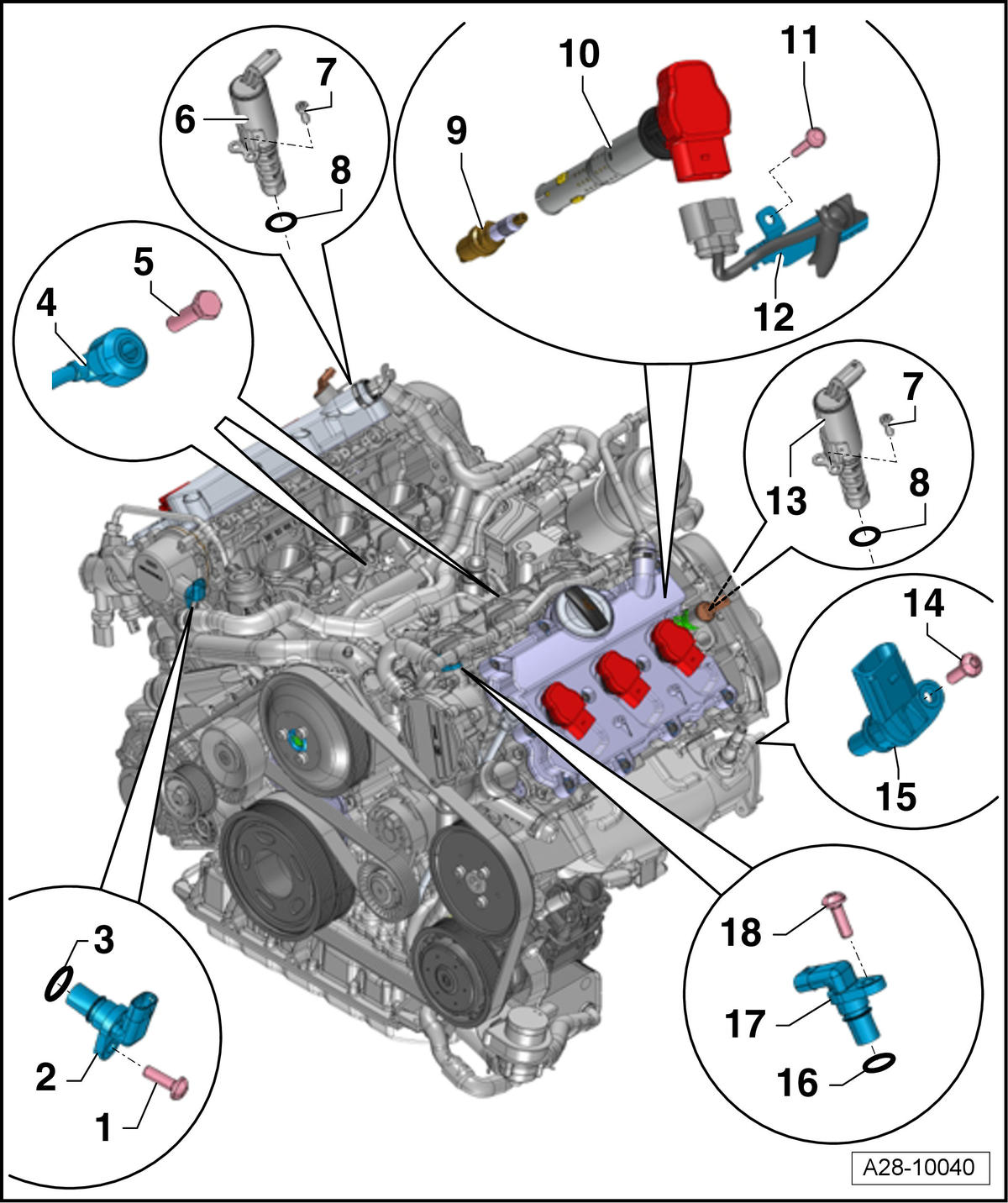

Ignition Overview
WARNING: This page is about a different variant/trim than selected.
- Bolt
- Tightening specification: 9 Nm
- Camshaft Position Sensor -G40-
- Removing and installing, refer to CAMSHAFT POSITION SENSORS -G40- / -G163-
- O-ring
- Replace
- Knock Sensor
- Knock sensor 1 -G61- (right), Knock sensor 2 -G66- (left)
- Removing and installing, refer to KNOCK SENSORS -G61- / -G66-
- Bolt
- Tightening specification: 20 Nm
- Camshaft Adjustment Valve 1 -N205-
- Bolt
- Tightening specification: 5 Nm
- O-ring
- Replace
- Spark Plug
- Change interval, refer to Maintenance Intervals
- Tightening specification: 30 Nm
- Ignition Coil
- Removing and installing, refer to IGNITION COILS .
- Bolt
- Tightening specification: 5 Nm
- Wiring Harness
- Camshaft Adjustment Valve 2 -N208-
- Bolt
- Tightening specification: 9 Nm
- Engine Speed Sensor -G28-
- Removing and installing, refer to Engine Speed Sensor -G28-
- O-ring
- Replace
- Camshaft Position Sensor 2 -G163-
- Removing and installing, refer to CAMSHAFT POSITION SENSORS -G40- / -G163-
- Bolt
- Tightening specification: 9 Nm
