Camshaft Adjustment Valve 1, Checking

Observe all safety precautions: SAFETY PRECAUTIONS

View clean working conditions: CLEAN WORKING CONDITIONS

Use only gold-plated terminals when servicing any component with gold-plated electrical harness connector terminals.

For wiring diagrams, component locations, and connector views, Refer to the applicable SYSTEM WIRING diagram.

Special Tools And Workshop Equipment Required

• Multimeter
• Wiring diagram

Test requirements

• The Camshaft Adjustment Valve 1 -N205- fuse OK.
• Motronic Engine Control Component Power Supply Relay J757 OK.
• Battery voltage at least 12.5 volts.
• All electrical consumers such as, lights and rear window defroster, switched off.
• Vehicles with automatic transmission, shift selector lever into position "P" or "N".
• A/C switched off.
• Ground (GND) connections between engine/transmission/chassis OK.
• Ignition switched off.

Test procedure

-- Perform a preliminary check to verify the customers complaint. Refer to PRELIMINARY CHECK

Start diagnosis

-- Remove the engine cover with air filter. Refer to appropriate service information.

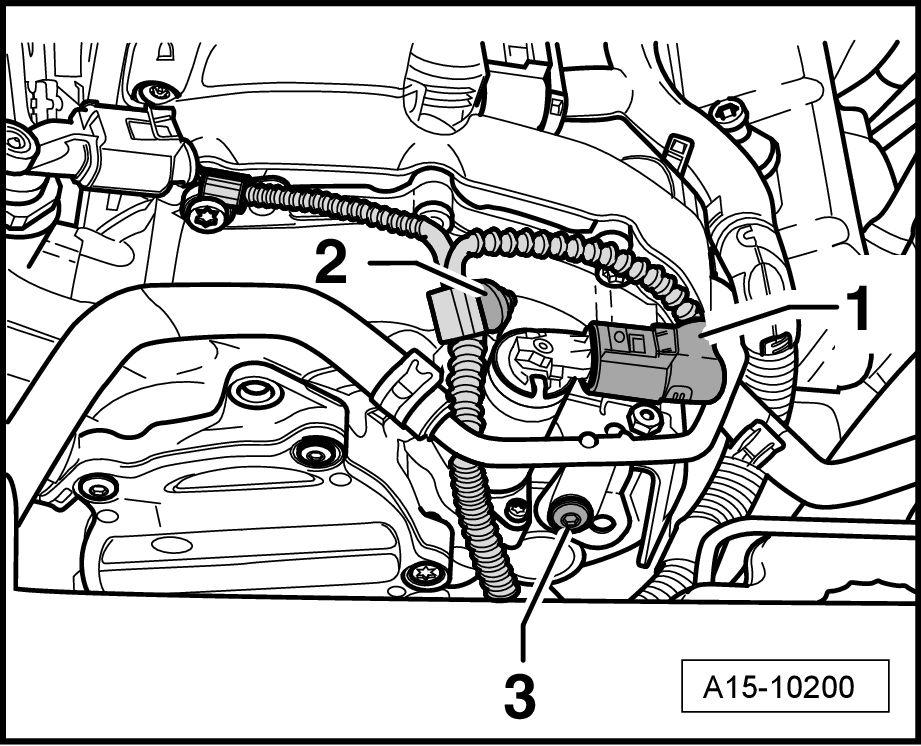

-- Disconnect Camshaft Adjustment Valve 1 -N205- electrical harness connector -1-.

-- Using a multimeter, check the Camshaft Adjustment Valve 1 -N205- for resistance.

Specified value: 5.0 to 8.0 Ω (at approx. 20° C)

If the specified value was not obtained:

-- Replace the Camshaft Adjustment Valve 1 -N205-. Refer to appropriate service information.

If the specified value was obtained:

Checking voltage

-- Switch the ignition on.

-- Using a multimeter, Check the Camshaft Adjustment Valve 1 -N205- electrical harness connector terminal 1 to engine ground for voltage.

-- Switch the ignition off.

Specified value: battery voltage.

If the specified value was not obtained:

-- Check the wiring connections for an open circuit.

-- Check the wiring connection for damage, corrosion, loose or broken terminals.

-- If necessary, repair the faulty wiring connection.

If the specified value was obtained:

Checking wiring

If the manufacturers test box is being used, perform the following step.

-- Install the test box.

If the manufacturers test box is not being used, perform the following step.

-- Remove the Motronic Engine Control Module (ECM) -J623-. Refer to appropriate service information.

-- Using a multimeter, Check the Camshaft Adjustment Valve 1 -N205- electrical harness connector terminal 2 to the Motronic Engine Control Module (ECM) electrical harness connector T60 terminal 60 for an open circuit.

Camshaft Adjustment Valve 1 -N205- electrical harness connector terminal	Motronic Engine Control Module (ECM) electrical harness connector T60 terminal or test box socket
2	60

Specified value: 1.5 Ω Max.

If the specified value was not obtained:

-- Check the wiring connection for an open circuit.

-- Check the wiring connection for damage, corrosion, loose or broken terminals.

-- If necessary, repair the faulty wiring connection.

If no malfunction is found in the wiring and voltage supply was not OK:

-- Replace the Motronic Engine Control Module (ECM) -J623-. Refer to appropriate service information.

-- Install the engine cover with air filter. Refer to appropriate service information.

Final procedures

After the repair work, the following work steps must be performed in the following sequence:

1. Check the DTC memory. Refer to DIAGNOSTIC MODE 03 - READ DTC MEMORY .
2. If necessary, erase the DTC memory. Refer to DIAGNOSTIC MODE 04 - ERASE DTC MEMORY .
3. If the DTC memory was erased, generate readiness code. Refer to READINESS CODE .
