Special Tools

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Fuel Inj. Pressure Gauge-CIS VAG 1318

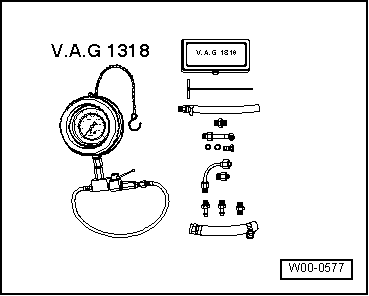

Fig 1: Fuel Inj. Pressure Gauge-CIS K-Jetronic VAG 1318 With Adapters VAG 1318/11, VAG 1318/17 And VAG 1318/23
Courtesy of AUDI OF AMERICA, LLC
Pressure Gauge Adapter VAG 1318/10-12
Connector Test Set VAG 1594C
Remote Control VAG 1348/3A with Remote Control VAG 1348/3-3

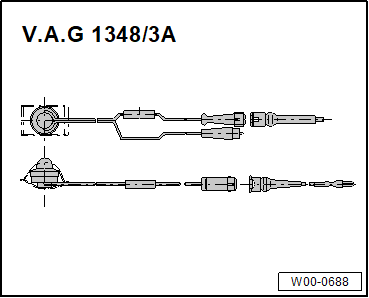

Fig 2: Remote Control VAG 1348/3A with Remote Control VAG 1348/3-3
Courtesy of AUDI OF AMERICA, LLC
Adapter Cable -VAG 1598/39-1-
Adapter Cable -VAG 1598/39-2-
Test Box 105 Pin -VAG 1598/42-

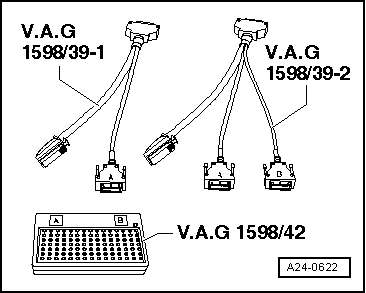

Fig 3: Adapter Cable VAG 1598/39 & Test Box VAG 1598/42
Courtesy of AUDI OF AMERICA, LLC
Release Tool f/ Rev. Light Switch Conn. T40138

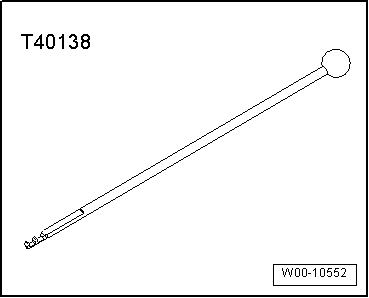

Fig 4: Release Tool f/ Rev. Light Switch Conn. T40138
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 5-50 Nm VAG 1331
Ring Spanner Insert VAG 1331/2

Fig 5: Torque Wrench VAG 1331 With Open End Wrench Socket VAG 1331/2
Courtesy of AUDI OF AMERICA, LLC
Torque Wrench 5-50 Nm VAG 1331

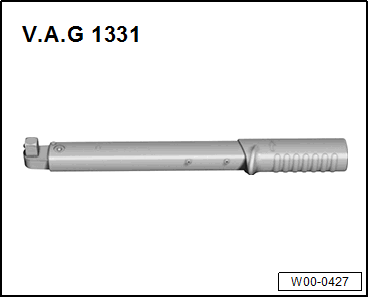

Fig 6: Identifying Torque Wrench (5 To 50 Nm) VAG 1331
Courtesy of AUDI OF AMERICA, LLC
Ratchet Reversible VAG 1331/1

Fig 7: Ratchet, Reversible VAG 1331/1
Courtesy of AUDI OF AMERICA, LLC
Ring Spanner Insert VAG 1331/2

Fig 8: Torque Wrench VAG 1331 With Open End Wrench Socket VAG 1331/2
Courtesy of AUDI OF AMERICA, LLC
Socket 14 mm 3150

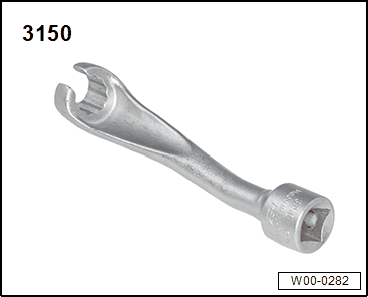

Fig 9: Socket 14 mm 3150
Courtesy of AUDI OF AMERICA, LLC
Tool Set T10133

Fig 10: Tool Set T10133
Courtesy of AUDI OF AMERICA, LLC
Ring Spanner 7-Piece Set 3337

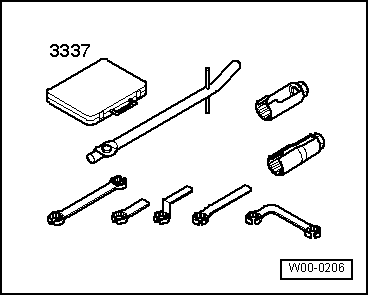

Fig 11: Ring Spanner 7-Piece Set 3337
Courtesy of AUDI OF AMERICA, LLC
Heat Gun 220 V/50 Hz VAS 1978/14A -item 1- with Nozzle Attachment -2- from the Wiring Harness Repair Kit VAS 1978 B
Small Commercially Available Locking Pliers -3-

Fig 12: Heat Gun, Adapter Nozzle And Pliers
