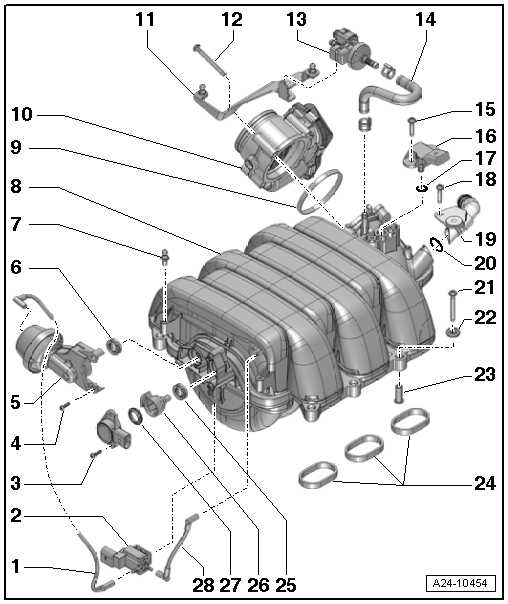

Intake Manifold, Upper Section Overview
WARNING: This page is about a different variant/trim than selected.
- Vacuum Hose
- Intake Manifold Tuning (IMT) Valve -N156-
- Bolt
- 2.5 Nm
- Bolt
- 2.5 Nm
- Intake Manifold Change-Over Actuator
- Installed location of tooth segments for variable intake manifold Fig 2
- As replacement part together with -26-
- Seal
- Replace if damaged
- Lift out with screwdriver to replace
- Press in by hand
- Ball Pin
- 2.5 Nm
- Intake Manifold Upper Section
- Removing and installing, refer to INTAKE MANIFOLD, UPPER SECTION
- Seal
- Replace
- Throttle Valve Control Module -J338-
- Bracket
- Bolt
- 6 Nm
- EVAP Canister Purge Regulator Valve 1 -N80-
- Hose
- Bolt
- 3 Nm
- Intake Air Temperature (IAT) Sensor -G42- /Manifold Absolute Pressure (MAP) Sensor -G71-
- O-ring
- Replace
- Bolt
- 2.5 Nm
- Crankcase Ventilation Hose
- O-ring
- Replace
- Bolt
- 8 Nm
- Washer
- Sleeve
- Seals
- Replace
- Seal
- Replace if damaged
- Lift out with screwdriver to replace
- Press in by hand
- Lever with Tooth Segment
- For variable intake manifold
- Installed location of tooth segments, see Fig 2
- As replacement part together with -5-
- Seal
- Replace if damaged
- Lift out with screwdriver to replace
- Press in by hand
- Vacuum Hose

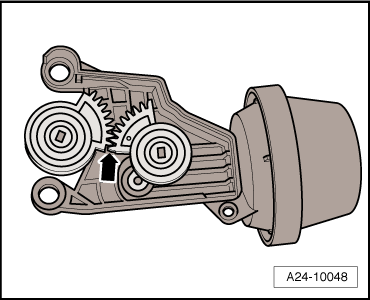

- The lower edges of the toothed segments must align with one another -arrow-.
