Special Tools

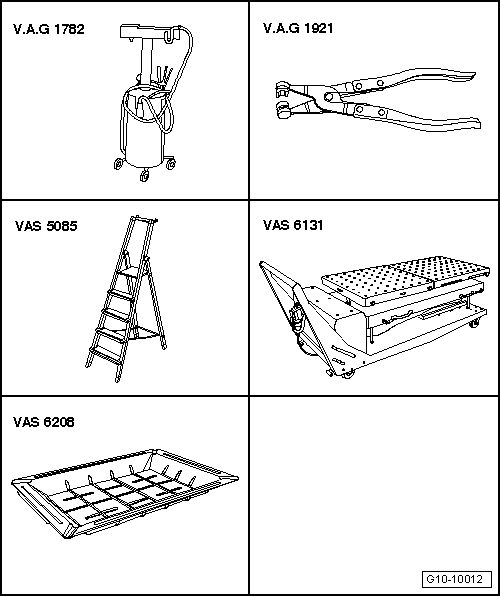

Fig 1: Identifying Special Tools -- Engine, Removal

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Used Oil Collection and Extraction Unit SMN372500
• Hose Clip Pliers VAG1921
• Step Ladder VAS5085
• Scissor Lift Table VAS6131B with Scissor Lift Table - Audi Set VAS6131/10 and Scissor Lift Table - Q7 Set VAS6131/13
• Shop Crane - Drip Tray VAS6208

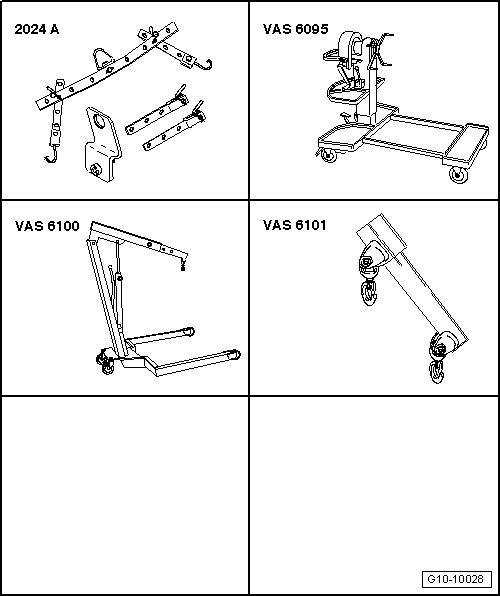

Fig 2: Identifying Special Tools - Engine, Securing To Engine And Transmission Holder

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

• Engine Sling 2024A
• Engine And Transmission Holder VAS6095 with Engine/Transmission Holder - V6 FSI Bracket VAS6095/1-5
• Shop Crane VAS6100
• Lift Arm Extension VAS6101

Special tools and workshop equipment required

• Used Oil Collection and Extraction Unit SMN372500
  Fig 3: Oil Collection and Extraction Unit SMN372500 (VAG 1782)

  Courtesy of AUDI OF AMERICA, LLC

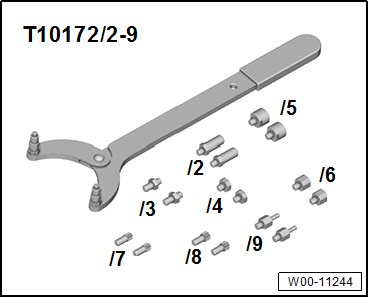

• Counterhold - Kit - Adapters T10172/2-9 with Counterhold - Kit - Adapter 5 T10172/5
  Fig 4: Counterhold - Kit - Multiple Use T10172 With Camshaft Lock T10172/11

  Courtesy of AUDI OF AMERICA, LLC
• Crankshaft Socket T40058

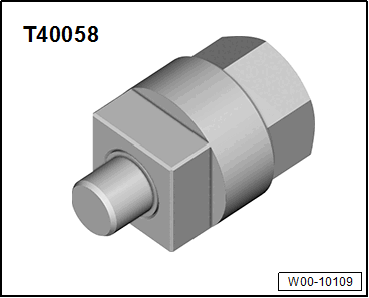

  Fig 5: Crankshaft Socket T40058

  Courtesy of AUDI OF AMERICA, LLC
• Engine Support - Basic Set T40091
  Fig 6: Engine Support - Basic Set T40091

  Courtesy of AUDI OF AMERICA, LLC
• Engine Support - Supplement Kit T40093A
  Fig 7: Engine Support Supplement Set T40093

  Courtesy of AUDI OF AMERICA, LLC
• Puller - Gear Shaft Linkage T40160

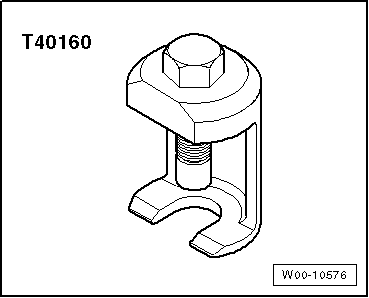

  Fig 8: Puller - Gear Shaft Linkage T40160

  Courtesy of AUDI OF AMERICA, LLC
• Clutch Module Assembly Aid T40169
  Fig 9: Clutch Module Assembly Aid T40169

  Courtesy of AUDI OF AMERICA, LLC
• Clutch Module Transportation Lock T40170

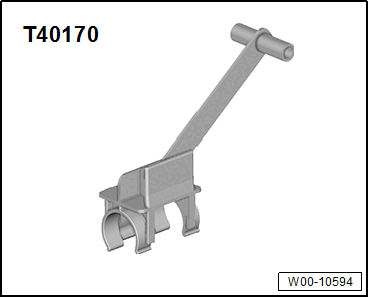

  Fig 10: Clutch Module Transportation Lock T40170

  Courtesy of AUDI OF AMERICA, LLC
• Torque Wrench 1332 Insert - Ring Wrench - 16mm VAG1332/14

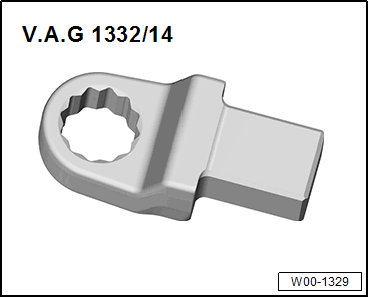

  Fig 11: Torque Wrench 1332 Insert - Ring Wrench - 16mm VAG1332/14

  Courtesy of AUDI OF AMERICA, LLC
• Engine Bung Set VAS6122
  Fig 12: Engine Bung Set VAS6122

  Courtesy of AUDI OF AMERICA, LLC
• Scissor Lift Table - Audi Set VAS6131/10, Scissor Lift Table - Q7 Set VAS6131/13 and Scissor Lift Table - Gearbox Support VAS6131/14
• Engine Support Bridge 10-222A
  Fig 13: Engine Support Bridge 10-222A

  Courtesy of AUDI OF AMERICA, LLC
• Pry Lever 80-200
  Fig 14: Pry Lever 80-200

  Courtesy of AUDI OF AMERICA, LLC
