Right Engine Mount, Removing And Installing: Removing

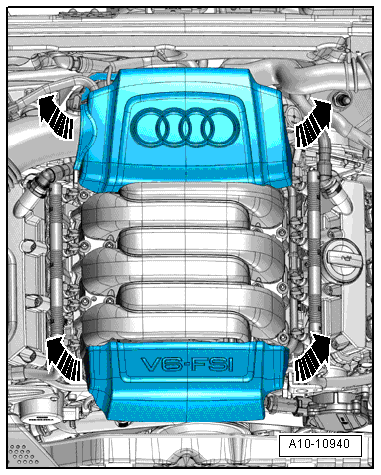

Fig 1: Identifying Engine Covers

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear engine cover -top arrows-.

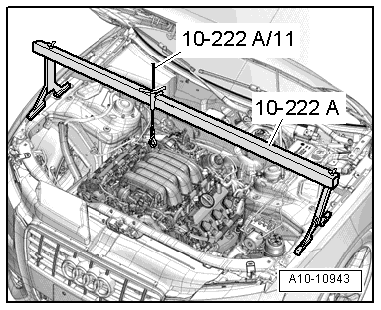

-- Position the Engine Support Bridge 10-222A on the left and right suspension strut towers as illustrated.

Fig 2: Position Engine Support Bridge On Left And Right Suspension Strut Tower As Shown In Illustration

Courtesy of AUDI OF AMERICA, LLC

-- Attach the Engine Support Bridge - Spindle 10-222A /11 to the right engine lifting eye and pretension the engine slightly.

-- Remove the right front wheel.

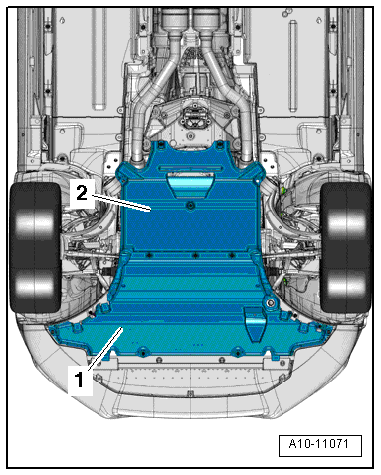

Fig 3: Noise Insulation Panels

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Remove the front noise insulation -1-. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the nut -1- and remove the bracket with the wiring harness from the subframe.

Fig 4: Identifying Nut And Bracket With Wiring Harness From Subframe

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1, 2 and 4- and move the right engine mount retaining plate -3- to the side.

Fig 5: Identifying Bolts And Right Engine Mount Retaining Plate

Courtesy of AUDI OF AMERICA, LLC

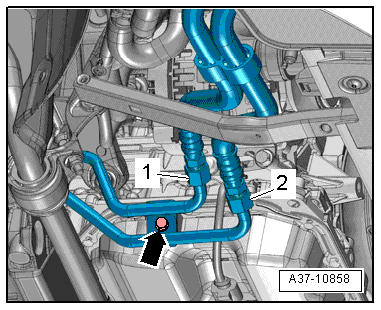

-- Vehicles with the multitronic transmission 0AW or automatic transmission 0B6: remove the bolt -arrow- on the ATF line bracket.

Fig 6: Identifying ATF Line Bracket

Courtesy of AUDI OF AMERICA, LLC

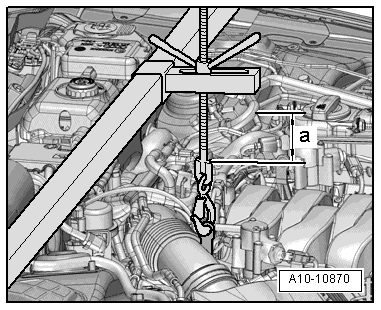

-- Lift the engine using the Engine Support Bridge - Spindle 10-222A /11 to dimension -a-.

Fig 7: Raising Engine To Dimension -A- Using Spindle 10-222A /11

Courtesy of AUDI OF AMERICA, LLC

• Dimension -a- = approximately 20 mm.

-- Remove the right engine mount.
