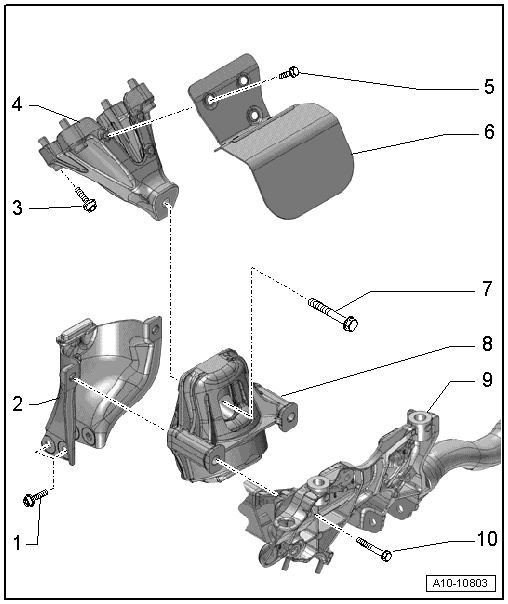

Overview - SUBFRAME Mount
WARNING: This page is about a different variant/trim than selected.
- Bolt
- 20 Nm
- Retaining Plate
- For the engine mount
- Replace when replacing the engine mount
- Bolt
- 40 Nm
- Engine Support
- Bolt
- 10 Nm
- Heat Shield
- Bolt
- 90 Nm +90° additional turn
- Replace
- Engine Mount
- Removing and installing. Refer to LEFT ENGINE MOUNT, REMOVING AND INSTALLING for left side and RIGHT ENGINE MOUNT, REMOVING AND INSTALLING for right side.
- Replace in pairs on the left and right
- Subframe
- Bolt
- 55 Nm
