Tightening Specifications

WARNING: This page is about a different car, the 2012 Audi Q5, 2011 Audi Q5, 2010 Audi Q5, and 2009 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The tightening specifications apply only to lightly greased, oiled, phosphated or blackened nuts and bolts.

Additional lubricant such as engine or transmission oil may be used, but do not use graphite lubricant.

Do not use any parts that have had the lubrication removed.

Tightening specification tolerance: ±15%.

Component		Nm
Bolts and nuts	M6	9
	M7	15
	M8	20
	M10	40
	M12	65

Fig 1: Disengaging Catches -Arrows A- And Remove Upper Part Of Line Pass-Through -2- Upward -Arrow B-

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the ground bolt -1- to 9 Nm.

Fig 2: Locating Ground (GND) Wire to Longitudinal Member

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nut -arrow- to 9 Nm.

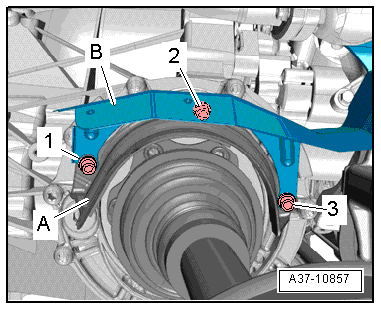

Fig 3: Identifying Heat Shield And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -1, 2, 3- to 23 Nm.

Engine to DSG transmission 0B5

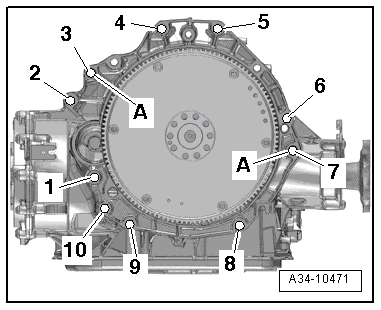

Fig 4: Identifying Engine/Transmission Connecting Bolts, Alignment Sleeves -A-, Starter Bolts -1- And -2-

Courtesy of AUDI OF AMERICA, LLC

Item

Bolt

M10 x 50 ¹⁾

2 to 6

M12 x 100 ²⁾

30 + 90°

M12x125 ²⁾

30 + 90°

8, 9, 10

M10 x 60 ²⁾

15 + 90°

Alignment sleeves for centering

Bolt class 10.9, the steel bolt may be used again unlimited number of times.
The aluminum bolts -2 to 10- may be used twice (See Fig 4).
The aluminum bolts may be used twice. Therefore, the bolts must be marked with two notches "X" made by a chisel after they have be used the first time -arrow- (See Fig 5).

⁽¹⁾	To prevent damaging the bolts when marking them, do not clamp them in a vise. Insert the bolt using a 14 mm socket with a 1/2 drive, which is inserted in to the vise, as illustrated (See Fig 5).

The aluminum bolts -2 to 10- may be used twice. Therefore, the bolts must be marked with two notches "X" made by a chisel after they have be used the first time -arrow- .

Fig 5: Identifying Aluminum Bolts Marked With An "X"
Courtesy of AUDI OF AMERICA, LLC
Bolts marked with an "X" may not be used again.
