Parts Location [08/2013 - ]: Illustration

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

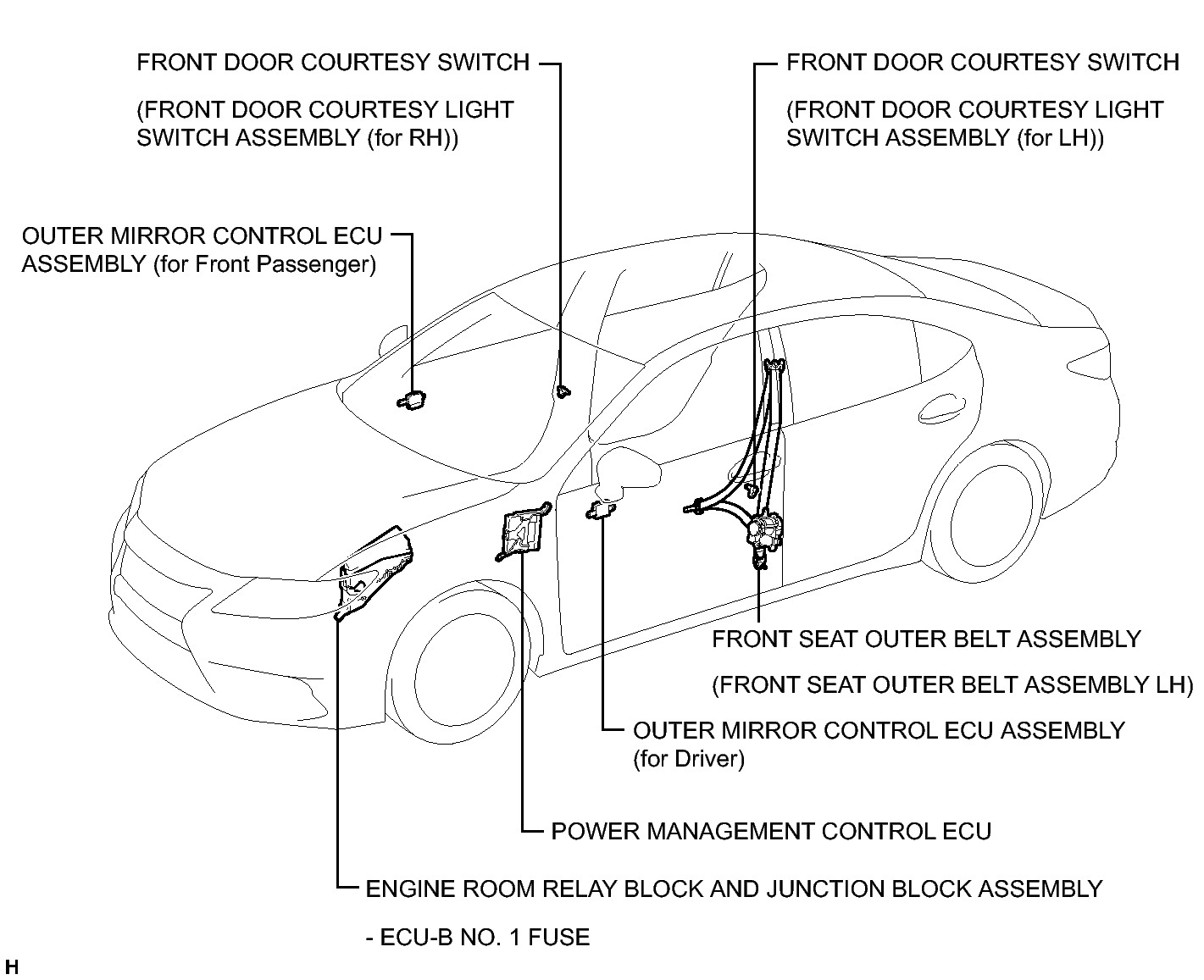

Fig 1: Identifying Front Power Seat Control System (W/ Memory) Components Location (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

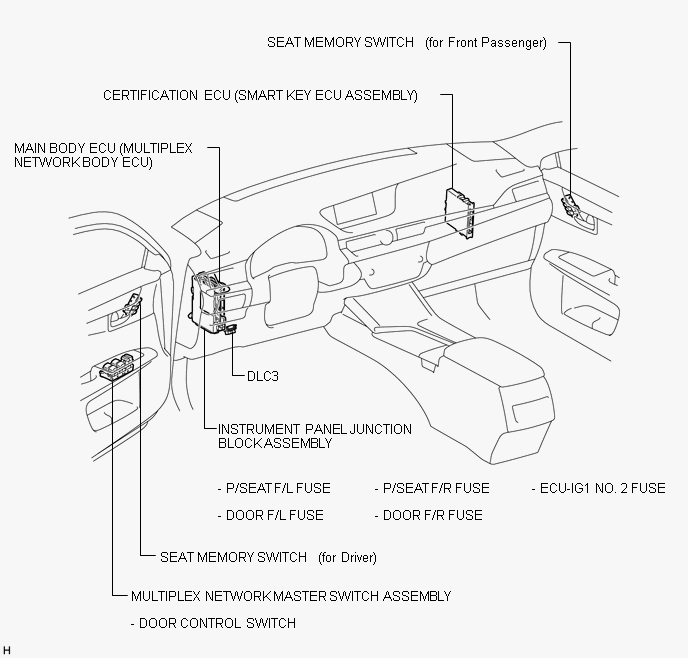

Fig 1: Identifying Front Power Seat Control System (W/ Memory) Components Location (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

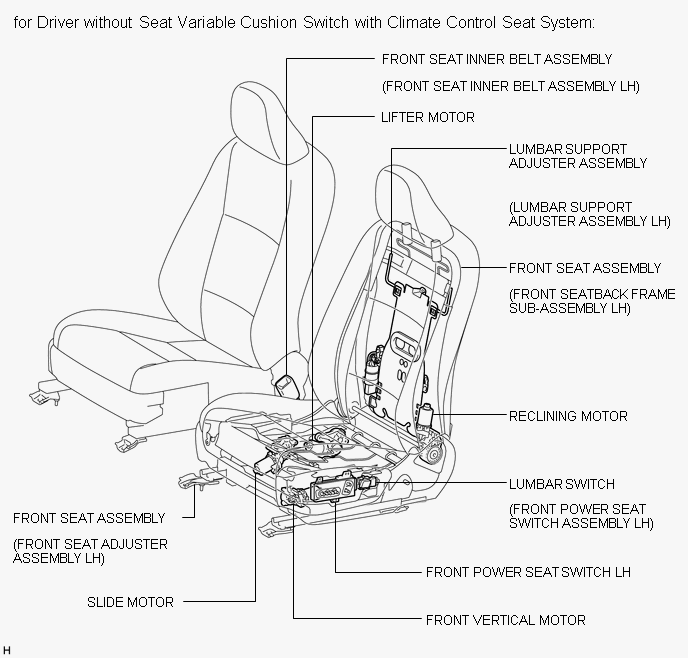

Fig 1: Identifying Front Power Seat Control System (W/ Memory) (For Driver W/O Seat Variable Cushion Switch And Climate Control Seat System) Components Location (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

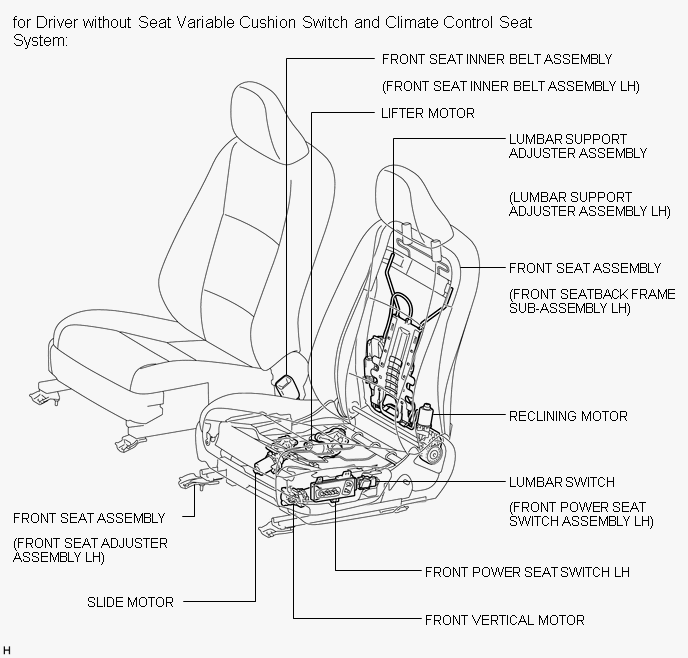

Fig 1: Identifying Front Power Seat Control System (W/ Memory) (For Driver W/O Seat Variable Cushion Switch W/ Climate Control Seat System) Components Location (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

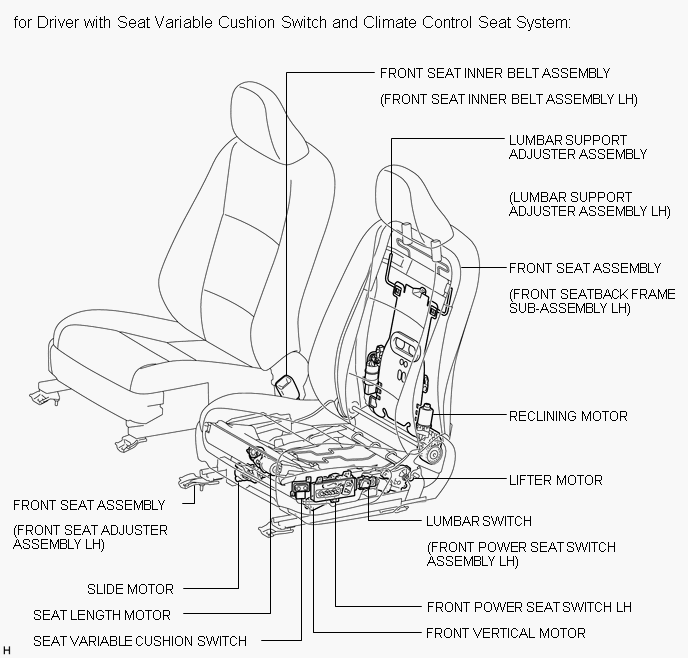

Fig 1: Identifying Front Power Seat Control System (W/ Memory) (For Driver W/ Seat Variable Cushion Switch And Climate Control Seat System) Components Location (5 Of 7)

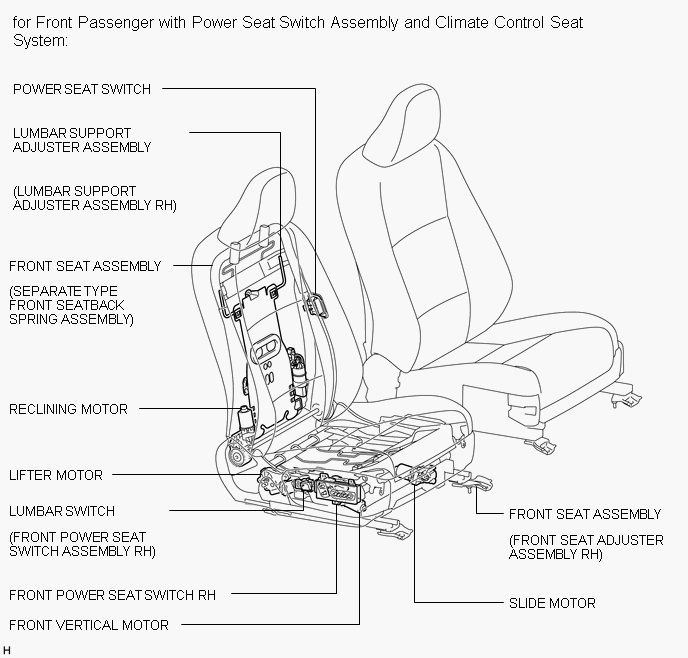

Fig 1: Identifying Front Power Seat Control System (W/ Memory) (For Front Passenger W/ Power Seat Switch Assembly And Climate Control Seat System) Components Location (6 Of 7)

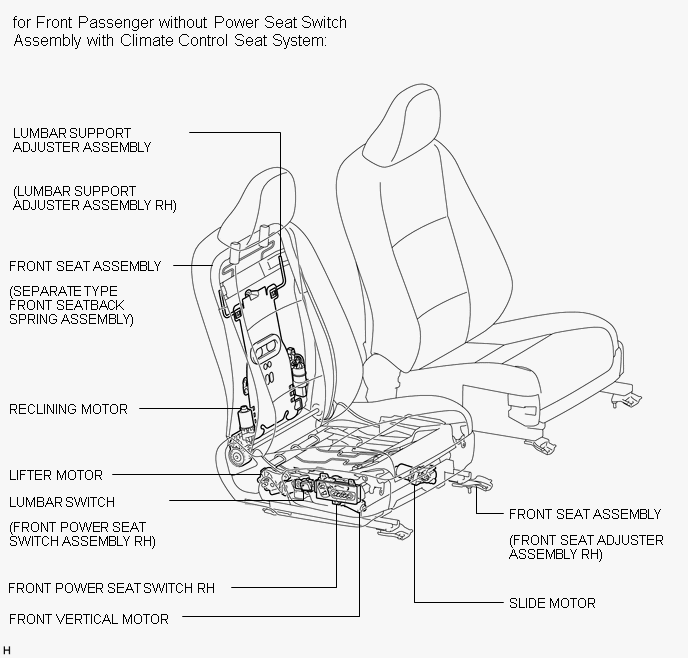

Fig 1: Identifying Front Power Seat Control System (W Memory) (For Front Passenger W/O Power Seat Switch Assembly And Climate Control Seat System) Components Location (7 Of 7)
