Special Tools

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

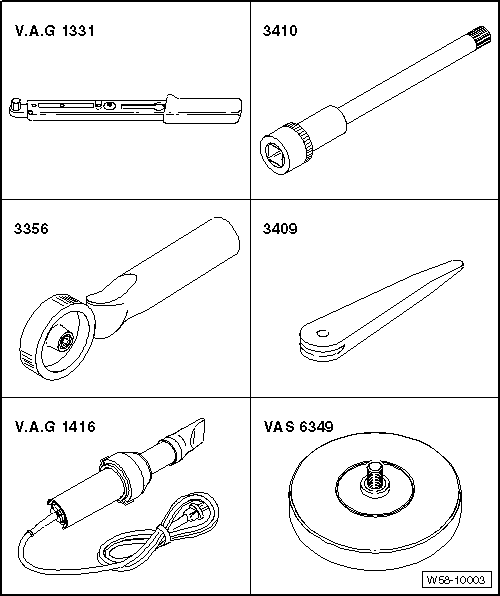

Fig 1: Identifying Door Components Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Torque Wrench: VAG1331
Socket: 3410
Roller: 3356
Trim Removal Wedge: 3409
Hot Air Gun: VAG1416
Adhesive Strip Remover: VAS6349

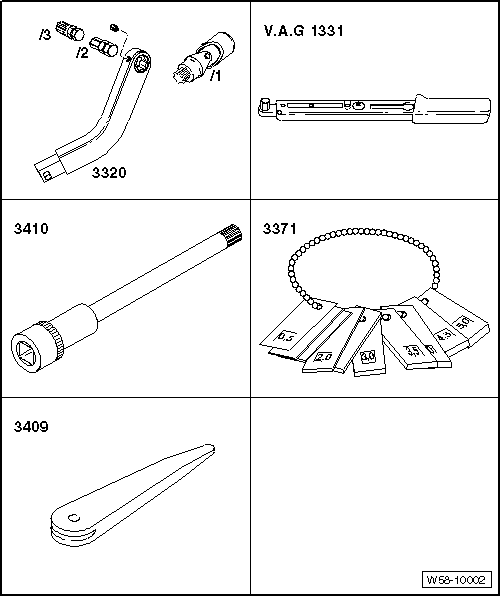

Fig 2: Identifying Front Door Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

Door Adjusting Wrench: 3320
Joint for 3320: 3320/1
Wrench - Door Adjusting - Box Wrench : 3320/2
Wrench - Door Adjusting - Box Wrench : 3320/3
Torque Wrench: VAG1331
Socket: 3410
Adjustment Gauge: 3371
Trim Removal Wedge: 3409

Special tools and workshop equipment required

Hot Air Gun: VAG1416
Adhesive Strip Remover: VAS6349 Lock Cylinder Housing Assembly Tool : T10389
