Installing After Replacing The A-Pillar

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

If the A-pillar was replaced, the bolts in the A-pillar must be tightened as described.

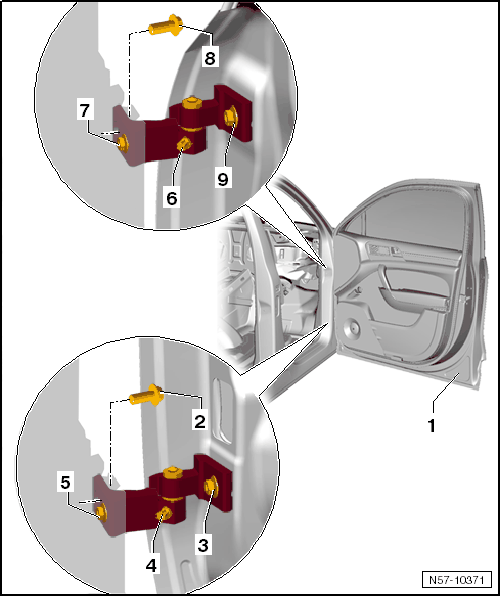

Fig 1: Identifying A-Pillar And Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The A-pillar was replaced.

Install in reverse order of removal. Note the following:

-- Install the door -1- and tighten the bolts -2, 5, 7 and 8- to 20 Nm and 90°.

Always replace the bolts.

-- Make sure the front door gap dimension is correct. Refer to BODY GAP DIMENSIONS .
