Window Shaft Strip, Removing And Installing: Notes

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The seal -1- has a metal insert in the center.

If it is bent, it will not be possible to straighten the seal -1-. It will remain "wavy".

Pull the seals -1 and 2- off evenly without bending them.

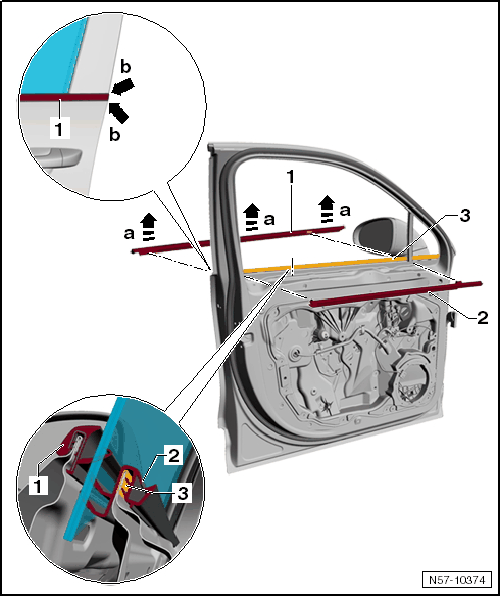

Fig 1: Identifying Seals -1 To 2- And Flange -3-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
