SUBFRAME, Removing And Installing: Installing

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

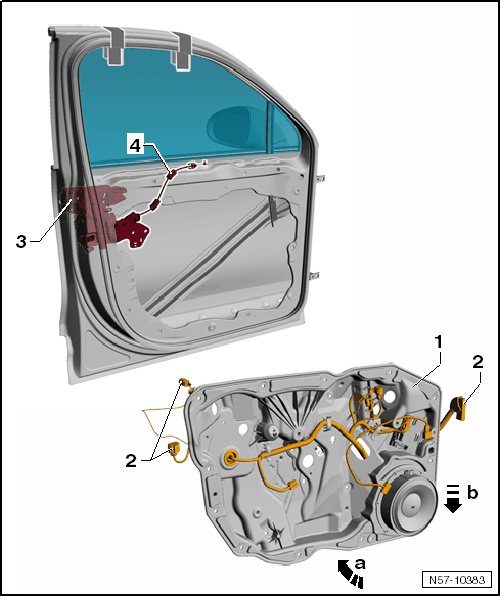

Fig 1: Identifying Harness Connectors -2- And Door Lock -3- Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the harness connectors -2- to the door lock -3-.

-- Slide the subframe -1- upward at an angle -arrow a- into the door.

-- Guide the line -2- and release cable -4- into the door.

-- Slide the subframe -1- into the installation position -arrow b-.

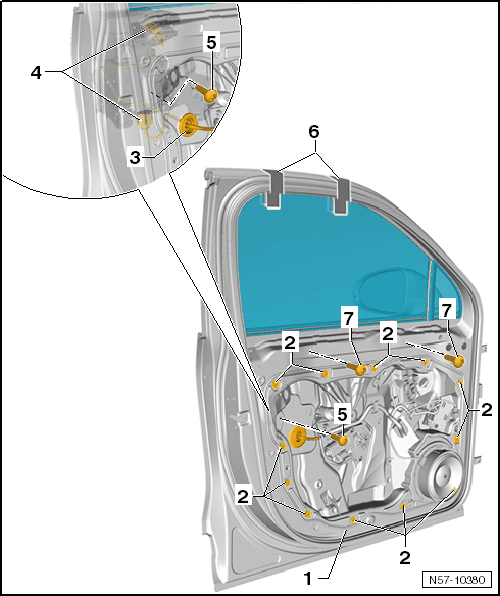

Fig 2: Identifying Subframe -1- Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolt -5-, tightening specification: 2 Nm.

-- Tighten the bolts -7-, tightening specification: 8 Nm.

-- Tighten the bolts -2-, tightening specification: 8 Nm.

-- Continue by performing the steps used in removal in reverse order.

NOTE:

The crash sensor is also reconnected when the battery is connected.

Pay attention to all notes in this article for loosening and securing the crash sensor. Refer to AIRBAG, BELT TENSIONER AND BATTERY CUT-OUT UNITS, GENERAL SAFETY PRECAUTIONS .

-- Connect the battery ground cable with the ignition switched on. Refer to BATTERY, DISCONNECTING AND CONNECTING .

A function test must be performed before door trim is installed.
