Overview - Front Door

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

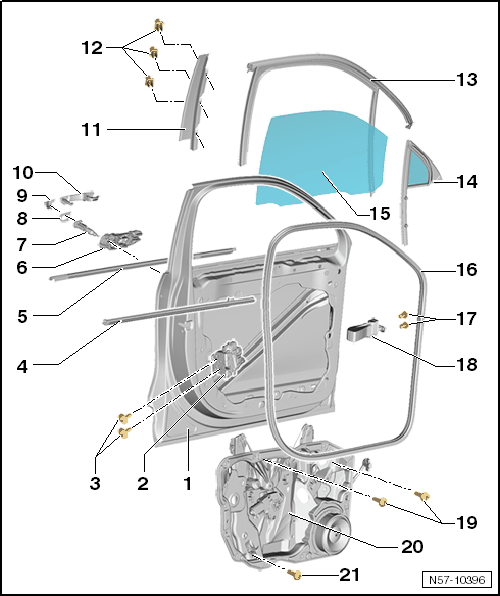

Fig 1: Exploded View Of Front Door Assembly

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Door
- Removing and installing. Refer to DOOR, REMOVING AND INSTALLING .
- Adjusting. Refer to DOOR ADJUSTMENT .
Door Lock
- Removing and installing. Refer to DOOR LOCK, REMOVING AND INSTALLING .
Bolt
- 20 Nm
- Quantity: 2
Inner Window Shaft Strip
- Removing and installing. Refer to WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
Outer Window Shaft Strip
- Removing and installing. Refer to WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
Bracket
Lock Cylinder
Backing Plate
Cap
Door Handle
- Removing and installing. Refer to DOOR HANDLE, REMOVING AND INSTALLING .
- Remove and install with the access/start authorization control module. Refer to DOOR HANDLE WITH THE ACCESS/START AUTHORIZATION CONTROL MODULE, REMOVING AND INSTALLING
Trim
Clip
- Quantity: 3
Window Guide
Fixed Door Glass
Door Window
- Removing and installing. Refer to DOOR WINDOW, REMOVING AND INSTALLING .
Outer Door Seal
- Removing and installing. Refer to OUTER DOOR SEAL, REMOVING AND INSTALLING .
Bolt
- 9 Nm.
- Quantity: 2
Door strap
- Removing and installing. Refer to DOOR STRAP, REMOVING AND INSTALLING .
Bolt
- 8 Nm.
- Quantity: 2
Subframe
- Removing and installing. Refer to SUBFRAME, REMOVING AND INSTALLING .
Bolt
- 8 Nm.
- Quantity: 12
