Lock Cylinder Cap, Removing And Installing: Removing

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Do not turn the screwdriver to pry off the lock cylinder cap.

-- Remove the door handle from the door.

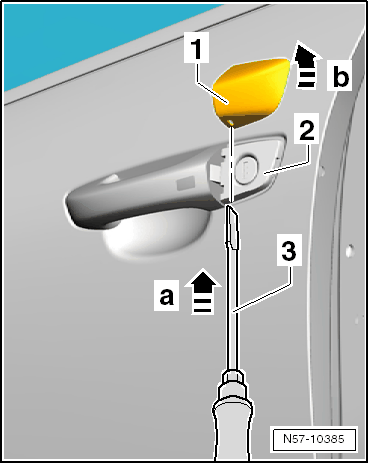

Fig 1: Identifying Lock Cylinder Cover Cap -1-, Lock Cylinder Cap -2- And Small Screwdriver -3-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Gently push a small screwdriver -3- in direction of -arrow a- into the opening on the bottom of the lock cylinder cap.

-- Remove the lock cylinder cap -1- with the screwdriver gently from the door and push up in direction of -arrow b-.
