Lock Cylinder Cap, Removing And Installing: Installing

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Place the lock cylinder cap -2- gently at an angle from above in direction of -arrow a- on the lock cylinder.

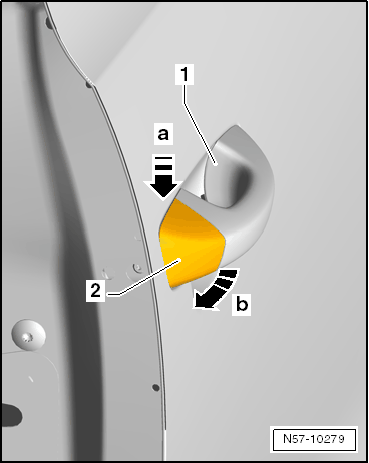

Fig 1: Identifying Installation Of Lock Cylinder Cover Cap
GWWN57-10279Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the lock cylinder cap -2- on to door in direction of -arrow b- until cover cap engages with lock cylinder.
