Cap Without Lock Cylinder, Removing And Installing: Installing

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the door handle -2- from the door in the direction of -arrow a-.

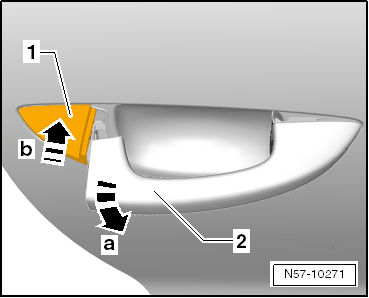

Fig 1: Identifying Installation Of Door Handle Cap

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the cap -1- into the bracket -arrow b-.

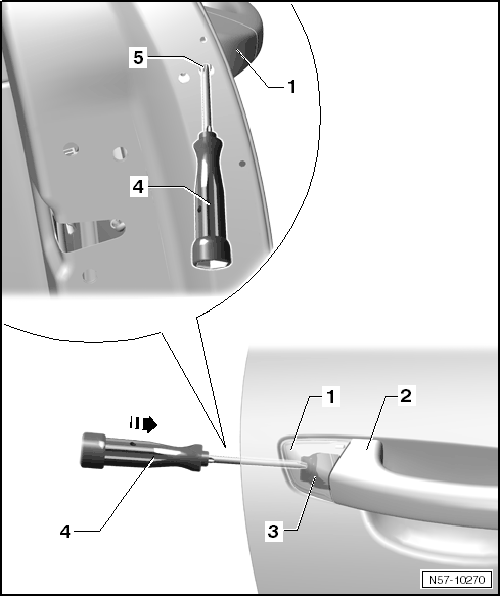

Fig 2: Identifying Screwdriver To Re-engage Hook

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert a screwdriver -4- at the locking hook -3- of the mounting bracket.

-- Push the cap -1- onto the door.

-- Push the screwdriver in just far enough in direction of -arrow- to release the hook.

-- Secure the plug -5-.
