Bracket, Removing And Installing: Removing

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Mounting Bracket -1- Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front door trim. Refer to Front Door Trim Panels .

-- Remove the subframe. Refer to SUBFRAME, REMOVING AND INSTALLING .

-- Remove the lock cylinder or the cap. Refer to LOCK CYLINDER, REMOVING AND INSTALLING and REMOVING .

-- Remove the door handle. Refer to DOOR HANDLE, REMOVING AND INSTALLING .

-- Remove the screws -2-.

-- Remove the bolts -6-.

-- Remove the bracket -1- together with the lock -5- from the door.

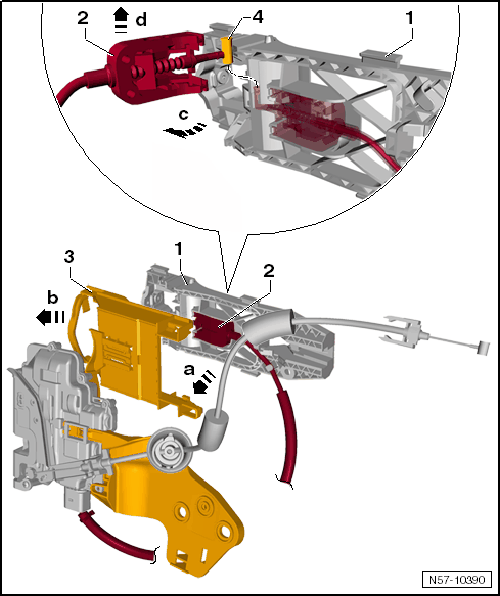

Fig 2: Identifying Mounting Bracket -1-, Retainer -2- And Retaining Bracket -3-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the latching mechanisms in the retaining bracket -3- in direction of -arrow a-.

-- Remove the mounting bracket -1- from the retaining bracket -3- in direction of -arrow b-.

Detach the Release Cable

-- Release the retainer -2- and swivel it out of the mount in the mounting bracket in direction of -arrow c-.

-- Lift the pin for the control cable out of the mount in direction of -arrow d-.
