General Information

Fig 1: Brake Charger/Bleeder Unit VAS 5234

Courtesy of AUDI OF AMERICA, LLC

Brake filling and bleeding tool VAS 5234

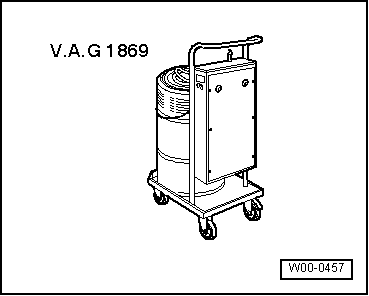

Brake filling and bleeding tool VAG 1869 with Adapter set VAG 1869/4

Fig 2: Brake Filler And Bleeder Unit VAG 1869
Courtesy of AUDI OF AMERICA, LLC

WARNING:

Brake fluid must never come into contact with fluids containing mineral oils (oil, gas, cleaning solutions). Oils containing minerals damage seals and sleeves on brake systems.
Brake fluid is poisonous. Do not let brake fluid come in contact with the paint.
Brake fluid is hygroscopic, which means that it absorbs moisture from the air. Always store brake fluid in air-tight containers.
Wash off any spilled brake fluid with plenty of water.
Observe waste disposal regulations!

Observe operating instructions for VAS 5234 or for VAG 1869!

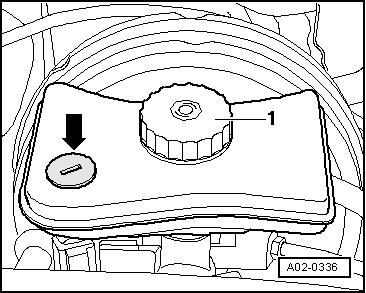

-- Remove brake fluid reservoir cap -1-.

Fig 3: View Of Brake Fluid Reservoir Cap

Courtesy of AUDI OF AMERICA, LLC

WARNING:

NOTE:

Use only new Original Audi brake fluid.

-- Remove brake fluid reservoir plug -arrow-.

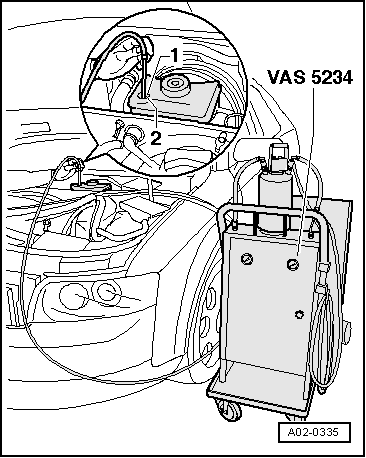

Fig 4: Connecting Suction Hose From VAS 52.4 Or VAG 1869 To Tube Of Brake Fluid Reservoir

Courtesy of AUDI OF AMERICA, LLC

-- Connect suction hose from VAS 5234 or VAG 1869 to tube -2- of brake fluid reservoir.

-- With suction hose from VAS 5234 or from VAG 1869 or with extractor, extract 2/3 of the brake fluid.

-- Disconnect suction hose.

-- Install brake fluid reservoir plug.

WARNING:

Do not reuse used / extracted brake fluid!

-- Install adapter -1- to brake fluid reservoir.

Fig 5: Connecting Suction Hose From VAS 52.4 Or VAG 1869 To Tube Of Brake Fluid Reservoir

Courtesy of AUDI OF AMERICA, LLC

-- Connect filler hose -2- from VAS 5234 or VAG 1869 to adapter.
