Display From September 2008: Removing

-- Remove instrument cluster panel. Refer to INSTRUMENT PANEL .

-- Disconnect harness connector from display and instrument cluster.

-- Remove screws -arrows- (2 Nm).

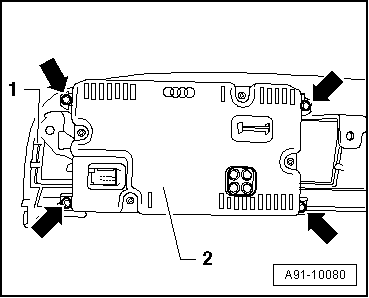

Fig 1: Identifying Screws And Screen For Trim

Courtesy of AUDI OF AMERICA, LLC

-- Carefully remove display -2- from the trim -1-.
