Navigation System Installed Locations From September 2008

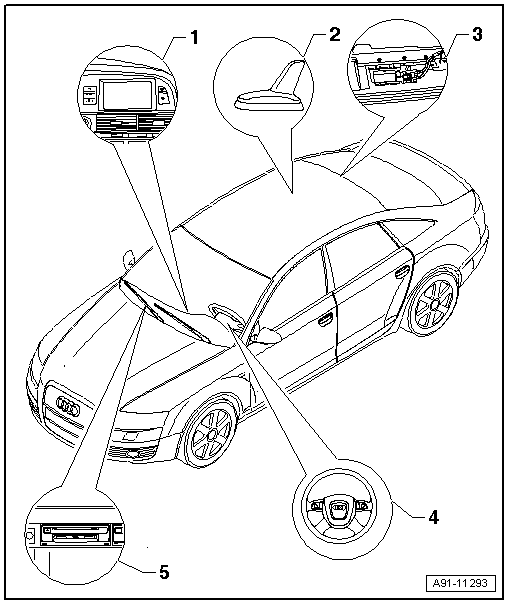

Fig 1: Navigation System Components Location

Courtesy of AUDI OF AMERICA, LLC

1. Front Information Display Control Head -J685-
   • In the center of the instrument panel
2. Roof Antenna -R216-
   • Sedan Overview, refer to ANTENNAS, MMI, FROM JUNE 2009 .
   • Avant Overview, refer to ANTENNAS, MMI, FROM JUNE 2009  .
3. Navigation System Antenna -R50-
   • Behind rear center roof end trim
   • For sedan overview, refer to ANTENNAS, WITH NAVIGATION SYSTEM ANTENNA, MMI, FROM SEPTEMBER 2008 .
4. Multifunction Steering Wheel
   • Removing and installing buttons, refer to MULTIFUNCTION BUTTONS
5. Information Electronics Control Module 1 -J794-
   • At left in glove compartment
   • For connector assignment, from 1 September 2008 refer to NAVIGATION SYSTEM FROM SEPTEMBER 2008
   • For removing and installing from 1 September 2008 refer to INFORMATION ELECTRONICS CONTROL MODULE 1, MMI, FROM SEPTEMBER 2008
