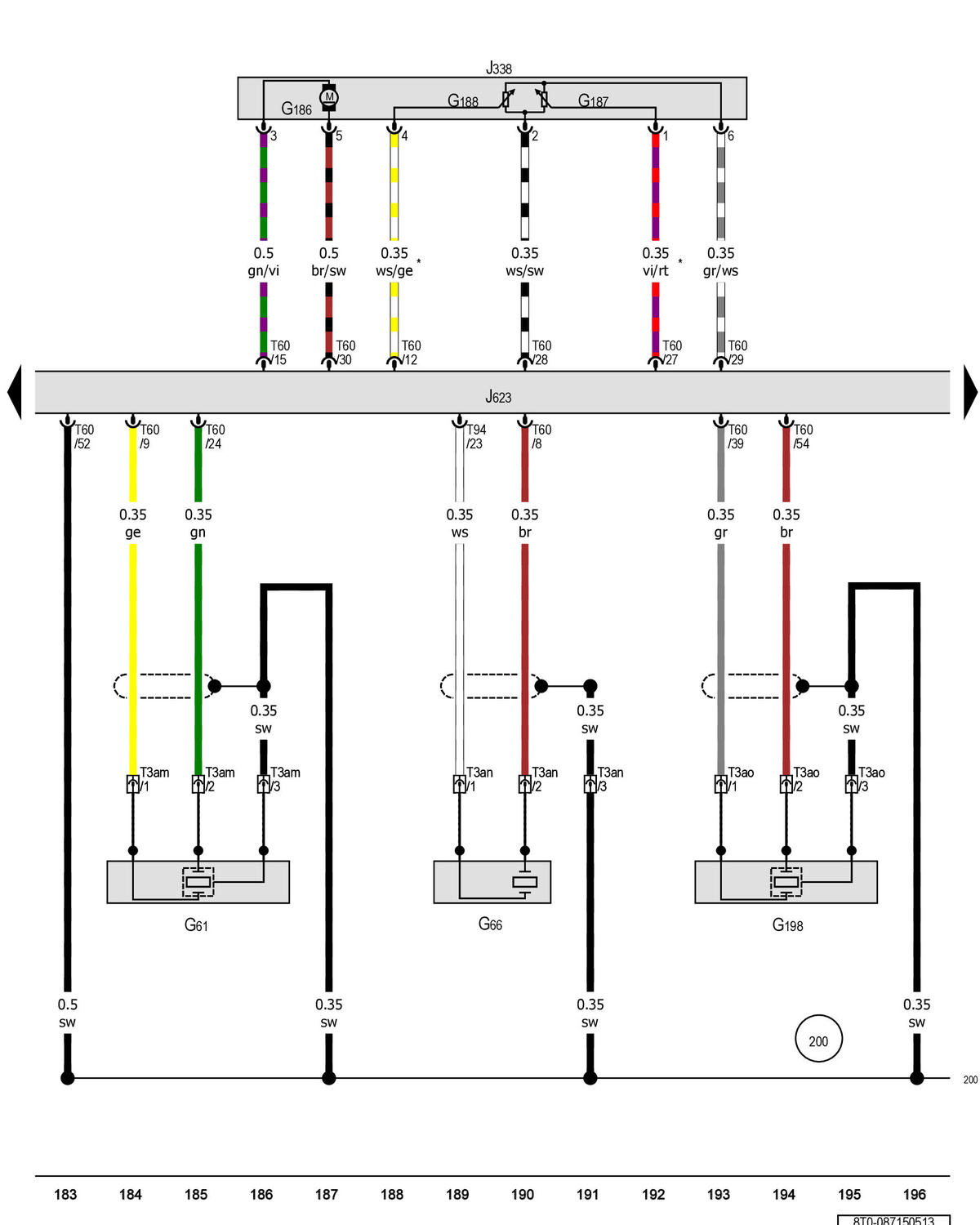

Knock Sensor 1, Knock Sensor 2, Knock Sensor 3, Throttle Valve Control Module, Engine Control Module
G61
Knock sensor 1 Type:BT, Slpdok:, Aim:BTG61
G66
Knock sensor 2 Type:BT, Slpdok:, Aim:BTG66
G186
EPC throttle drive
G187
EPC throttle drive angle sensor 1
G188
EPC throttle drive angle sensor 2
G198
Knock sensor 3 Type:BT, Slpdok:, Aim:BTG198
J338
Throttle valve control module Type:BT, Slpdok:, Aim:BTJ338
J623
Engine control module Type:BT, Slpdok:, Aim:BTJ623 Type:BT, Slpdok:, Aim:BTJ623
T3am
3-pin connector, black
T3an
3-pin connector, brown
T3ao
3-pin connector, black
T60
60-pin connector Type:BT, Slpdok:, Aim:BTT60
T94
94-pin connector Type:BT, Slpdok:, Aim:BTT94
200 - Ground connection shielding (in engine compartment wiring harness)
* The Color Of The Wires Depends On Vehicle Equipment
