ATEQ TPMS Reset Procedure

NOTE: On Audi vehicles, the TPMS3 cannot be used to register the TPMS sensors, or reset the TPMS.

NOTE: In order for the TPMS to work, the specified pressures (provided on tire pressure label) must be reprogrammed after every change in air pressure.

NOTE: Whenever tire pressure is adjusted (i.e., when readjusting tire pressure for a load condition), or after every wheel change, the adjusted pressure has to be stored again.

Ensure air pressure in all tires (including spare tire) is properly adjusted to specification.
Push RESET button until "DISPLAY TYPE" menu is shown. See Fig 1 & Fig 2 .
Push in the upper (lower) protrusion on the function selector switch to select the "SET" option.
Push RESET button.
Push in the upper (lower) protrusion on the function selector switch to select "TYRE PRESSURE" option. See Fig 3.
Push RESET button.
Push in the upper (lower) protrusion on the function selector switch to select "STORE PRESSURES" option. See Fig 4.
After the tire pressures have been saved, the system will measure the actual pressures once again, and then save these as the new pressures.

Fig 1: Identifying TPMS Function Controls

Courtesy of AUDI OF AMERICA, INC.

Fig 2: Identifying Starting Menu

Courtesy of AUDI OF AMERICA, INC.

Fig 3: Storing Tire Pressure (1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

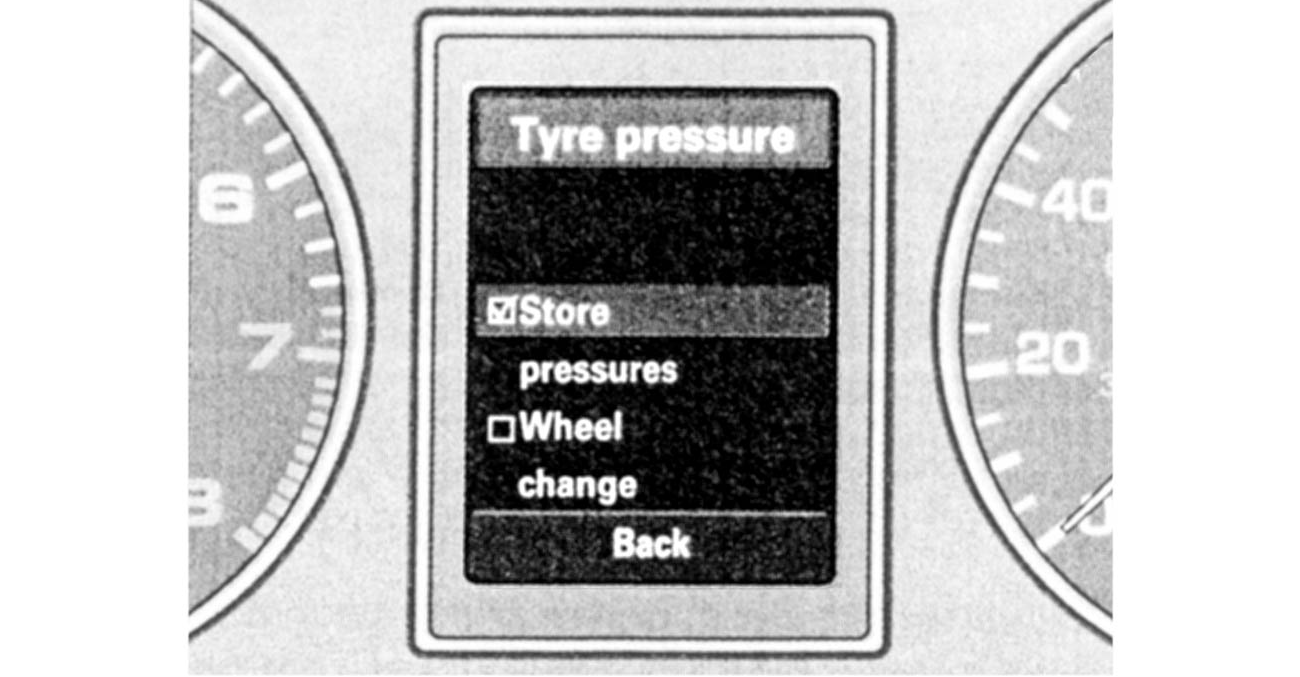

Fig 4: Storing Tire Pressure (2 Of 2)

Courtesy of AUDI OF AMERICA, INC.
