Driver's Door Control Module Connector End View (J386, T32d, T16f, T20d)

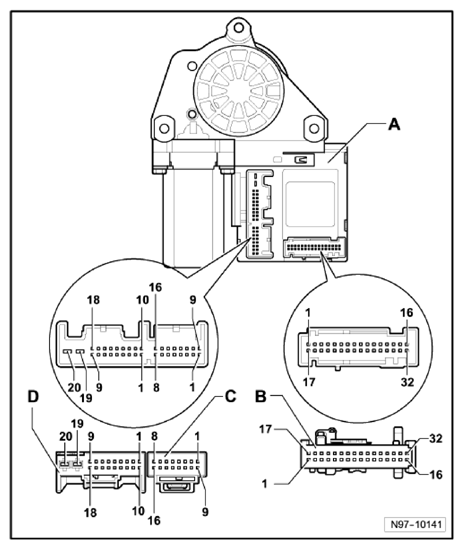

Fig 1: Driver's Door Control Module Connector End View (J386, T32d, T16f, T20d)
G10359907Courtesy of AUDI OF AMERICA, LLC
A Driver's Door Control Module -J386-
B 32-Pin Connector -T32d-, grey, connector C
C 16-Pin Connector -T16f-, black, connector B
D 20-Pin Connector -T20d-, black, connector A
