ABS Control Module Connector End View (J104, T38)

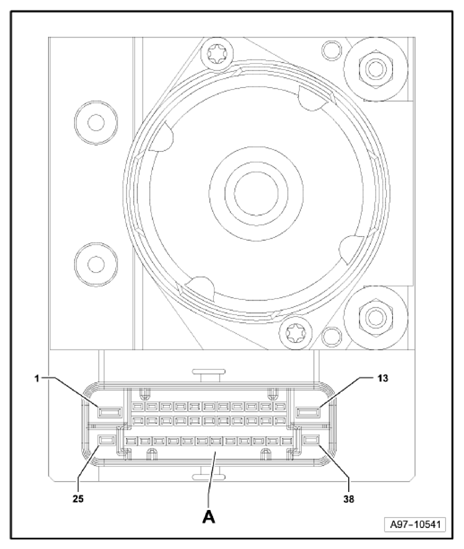

Fig 1: ABS Control Module Connector End View (J104, T38)

G10359910

Courtesy of AUDI OF AMERICA, LLC

A	ABS Control Module -J104-
A	38-Pin Connector -T38-, black
