Transmission Identification

The "6 Spd. Automatic Transmission 09D AWD" in installed in the Audi Q7. Allocation. Refer to CODE LETTERS, TRANSMISSION ALLOCATIONS, RATIOS AND EQUIPMENT .

Transmission code letters are located on the type plate on the left side of the transmission at the bottom.

NOTE:

The transmission code letters are also included on the vehicle data labels.

Example:

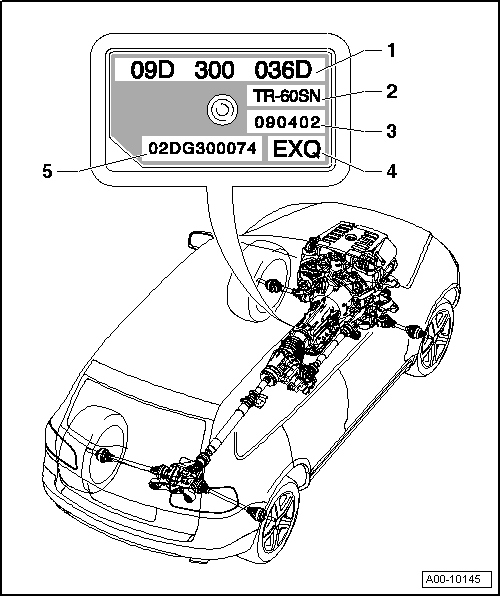

Fig 1: Transmission Identification Type Plate (Sample)

Courtesy of AUDI OF AMERICA, LLC
