Transmission Overview

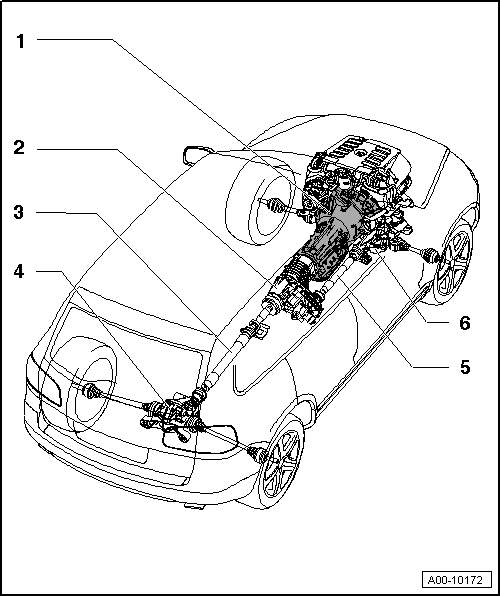

Fig 1: Powertrain Overview

Courtesy of AUDI OF AMERICA, LLC

Automatic transmission 0AT AWD
Transfer Case
- Removing and installing TRANSFER CASE, REMOVING AND INSTALLING
- Transmission Carrier and Bracket, Removing and Installing. Refer to TRANSMISSION CARRIER AND CONSOLE, REMOVING AND INSTALLING .
Rear Propshaft
Rear Final Drive
- Removing and installing refer to REAR FINAL DRIVE, REMOVING AND INSTALLING
Front Propshaft
Front Final Drive
- Removing and installing refer to FRONT FINAL DRIVE, REMOVING AND INSTALLING
