Transmission, Securing In Engine/Transmission Holder

Special tools and workshop equipment required

• Holding Plate VW309A
• Transmission SupportVW353
• Holding FixtureVW540
• Engine And Transmission HolderVW6095

Securing Transmission in Vertical Position

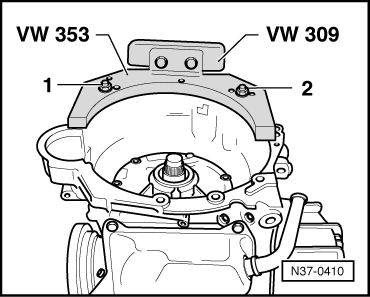

Fig 1: Securing Transmission To Assembly Stand With Bolts & Installing Transmission Support VW 353 Onto Holding Plate VW 309

Courtesy of AUDI OF AMERICA, LLC

-- Fasten the Transmission SupportVW353 to the transmission using the bolts -1- and -2-.

-- Attach the Holding PlateVW309A to the Transmission SupportVW353.

-- Place the transmission into the Engine And Transmission Holder VAS6095 using the Shop Crane VAS6100.

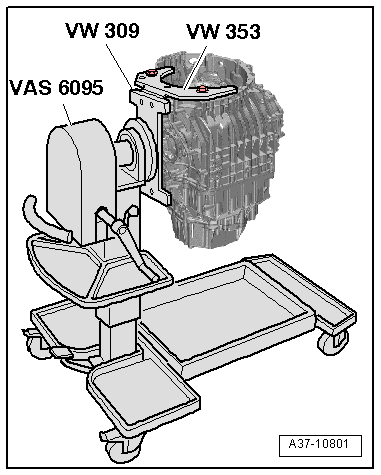

Fig 2: Place Transmission Into VAS 6095 Using Shop Crane VAS 6100

Courtesy of AUDI OF AMERICA, LLC

Supporting the Transmission Horizontally

Fig 3: Attach VW 540 to transmission

Courtesy of AUDI OF AMERICA, LLC

-- Fasten the Holding FixtureVW540 on the transmission -arrows-.

-- Place the transmission into the Engine And Transmission Holder VAS6095 using the Shop Crane VAS6100.
