Parking Aid Control Module Connector End View (J446, T16a, T12d, T12e)

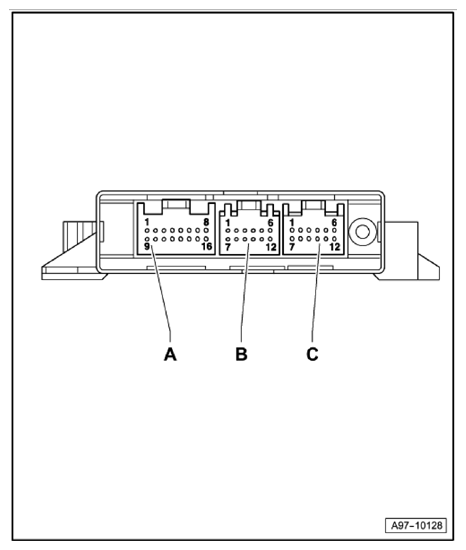

Fig 1: Parking Aid Control Module Connector End View (J446, T16a, T12d, T12e)
G10359758Courtesy of AUDI OF AMERICA, LLC
A 16-Pin Connector, brown -T16a-
B 12-Pin Connector, brown -T12d-
C 12-Pin Connector, black -T12e-
