SUBFRAME Mount Assembly Overview

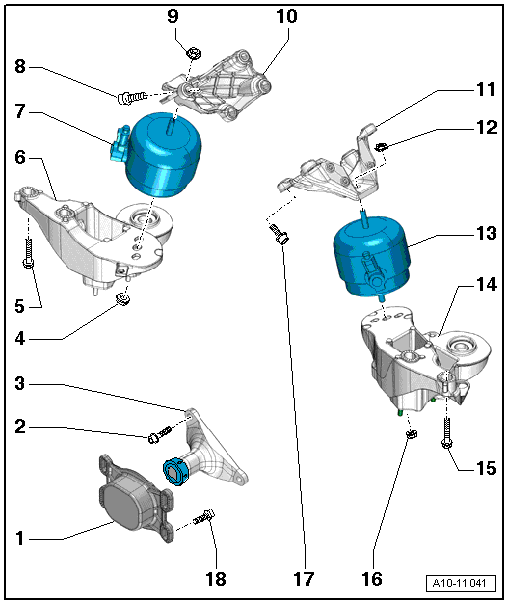

Fig 1: Subframe Mount Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Torque support stop
- Must contact torque support buffer at top and bottom without play
40 Nm
Torque bracket
- Removing and installing, refer to TORQUE SUPPORT, REMOVING AND INSTALLING
40 Nm
75 Nm
Right engine mount bracket
- Removing and installing, refer to RIGHT ENGINE MOUNT, REMOVING AND INSTALLING
Engine mount, right
- Removing and installing, refer to RIGHT ENGINE MOUNT, REMOVING AND INSTALLING
40 Nm
40 Nm
Right engine support
- Removing and installing, refer to RIGHT ENGINE MOUNT, REMOVING AND INSTALLING
Left engine support
- Removing and installing, refer to LEFT ENGINE MOUNT, REMOVING AND INSTALLING
40 Nm
Engine mount, left
- Removing and installing, refer to LEFT ENGINE MOUNT, REMOVING AND INSTALLING
Left engine mount console
- Removing and installing, refer to LEFT ENGINE MOUNT, REMOVING AND INSTALLING
75 Nm
40 Nm
40 Nm
40 Nm
