Heating and A/C unit, component overview: Notes
WARNING: This page is about a different car, the 2004 Audi S4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

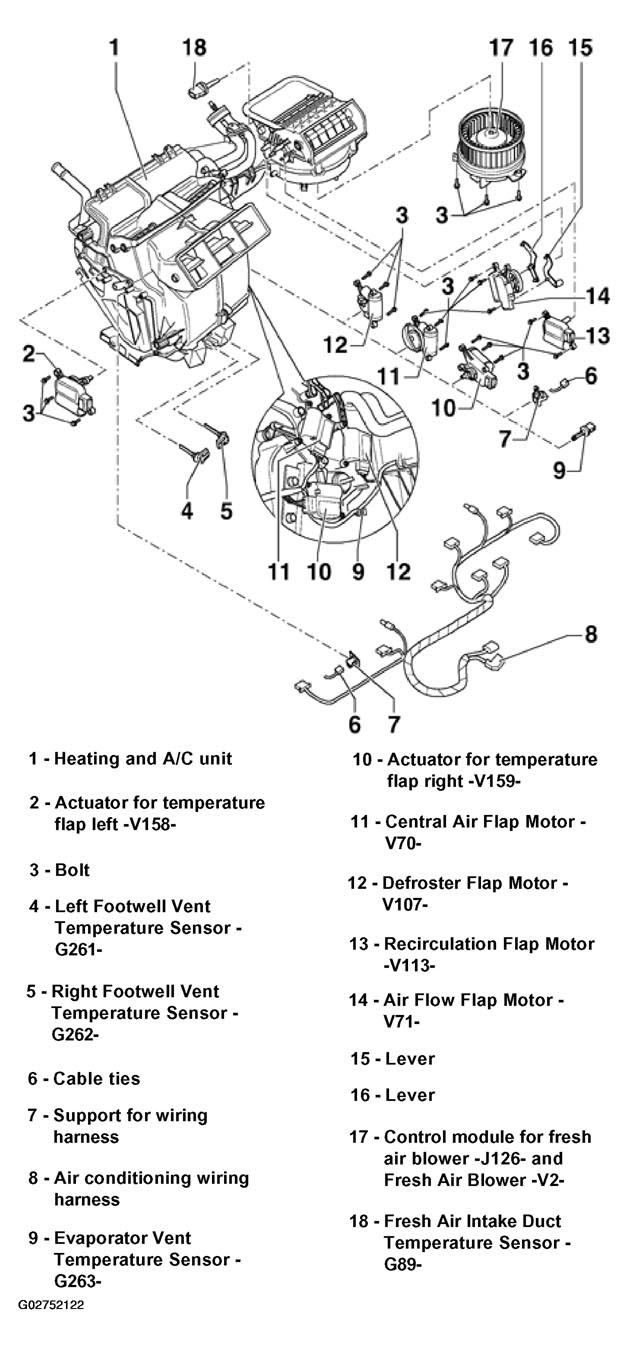

The following list pertains to .Fig 1
- Heating and A/C unit
- Removing and installing, see HEATING AND A/C UNIT, REMOVING AND INSTALLING
- Heating elements and air ducts removing and installing, see HEATING ELEMENTS AND AIR DUCTS, REMOVING AND INSTALLING
- Disassembling and assembling, see HEATING AND A/C UNIT, DISASSEMBLING AND ASSEMBLING .
- Actuator for temperature flap left -V158-
- With Potentiometer-actuator for temperature flap left -G220-
- Color designation of lever: red
- Removing and installing, see ACTUATOR FOR TEMPERATURE FLAP LEFT -V158-, REMOVING AND INSTALLING
- Bolt
- Left Footwell Vent Temperature Sensor - G261-
- Removing and installing, see LEFT FOOTWELL VENT TEMPERATURE SENSOR -G261-, REMOVING AND INSTALLING
- Right Footwell Vent Temperature Sensor - G262-
- Removing and installing, see RIGHT FOOTWELL VENT TEMPERATURE SENSOR - G262-, REMOVING AND INSTALLING
- Cable ties
- Support for wiring harness
- Air conditioning wiring harness
- Evaporator Vent Temperature Sensor - G263-
- Removing and installing, see EVAPORATOR VENT TEMPERATURE SENSOR -G263-, REMOVING AND INSTALLING
- Actuator for temperature flap right -V159-
- With Potentiometer - actuator for temperature flap right -G221-
- Color designation of lever: violet
- Removing and installing, see ACTUATOR FOR TEMPERATURE FLAP RIGHT -V159-, REMOVING AND INSTALLING
- Central Air Flap Motor -V70-
- With Central Flap Motor Position Sensor -G112-
- Color designation of curved washer: white
- Removing and installing, see CENTRAL AIR FLAP MOTOR -V70-, REMOVING AND INSTALLING
- Defroster Flap Motor - V107-
- With Defroster Flap Motor Position Sensor -G135-
- Color designation of lever: dark green
- Removing and installing, see DEFROSTER FLAP MOTOR -V107-, REMOVING AND INSTALLING
- Recirculation Flap Motor -V113-
- With Recirculation- Flap Motor Position Sensor -G143-
- Color designation of lever: blue
- Removing and installing, see RECIRCULATION FLAP MOTOR -V113-, REMOVING AND INSTALLING
- Air Flow Flap Motor -V71-
- With Back Pressure Flap Motor Position Sensor -G113-
- Color designation of curved washer: light blue
- Removing and installing, see DEFROSTER FLAP MOTOR -V107-, REMOVING AND INSTALLING
- Lever
- Lever
- Control module for fresh air blower -J126- and Fresh Air Blower -V2-
- Removing and installing, see CONTROL MODULE FOR FRESH AIR BLOWER -J126- AND FRESH AIR BLOWER -V2-, REMOVING AND INSTALLING
- The Control module for fresh air blower -J126- is integrated in the Fresh Air Blower -V2-, and cannot be replaced separately.
- Fresh Air Intake Duct Temperature Sensor -G89-
- Removing and installing, see FRESH AIR INTAKE DUCT TEMPERATURE SENSOR -G89-, REMOVING AND INSTALLING
