Parking Aid Control Module Connector End View (J446)

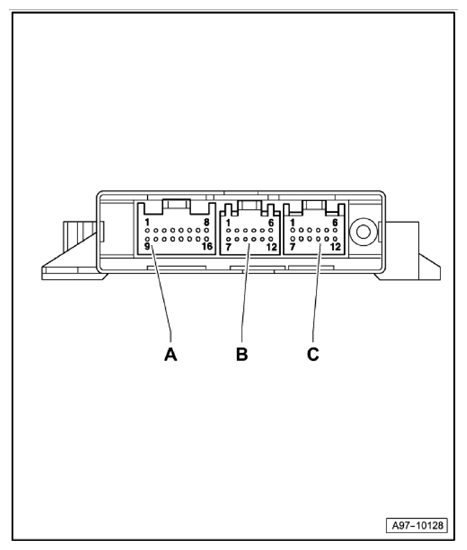

Fig 1: Parking Aid Control Module Connector End View (J446)
G10359776Courtesy of AUDI OF AMERICA, LLC
A 16-Pin Connector, brown
B 12-Pin Connector, brown
C 12-Pin Connector, black
