Heated Windshield Control Module Connector End View (J505)

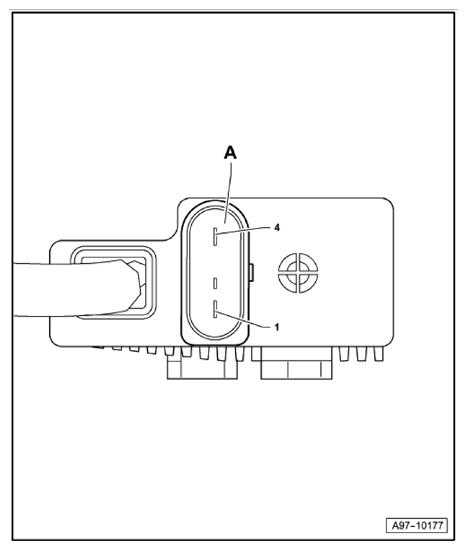

Fig 1: Heated Windshield Control Module Connector End View (J505)
G10359774Courtesy of AUDI OF AMERICA, LLC
A 4-Pin Connector, black
