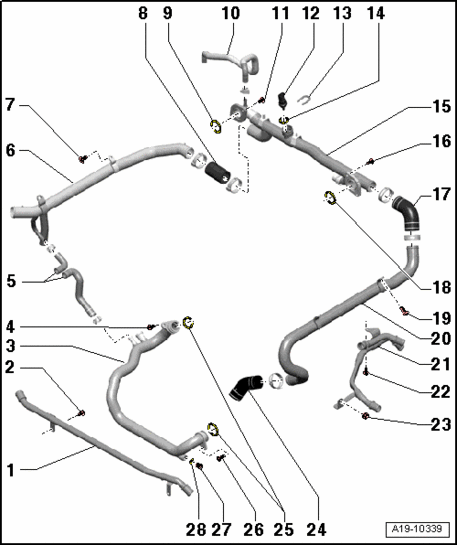

Coolant Pipes, Component Overview

1 - Lower front coolant pipe

• Removing and installing → Lower Front Coolant Line, Removing and Installing

2 - 9 Nm

3 - Front coolant line

• Removing and installing → Front Coolant Line, Removing and Installing

4 - 8 Nm plus an additional 90 (¹ /₄ turn)

• Replace

5 - Coolant hoses

• To generator

6 - Right coolant line

• Removing and installing → Right Coolant Pipe, Removing and Installing

7 - 9 Nm

8 - Coolant hose

9 - O-ring

• Replace

10 - Coolant hose

• To Intake manifold

11 - 9 Nm

12 - Engine Coolant Temperature (ECT) Sensor G62

• Removing and installing → Engine Coolant Temperature Sensor, Removing and Installing

13 - Retaining clip

14 - O-ring

• Replace

15 - Rear coolant pipe

• Removing and installing → Rear Coolant Pipe, Removing and Installing

16 - 9 Nm

17 - Coolant hose

18 - O-ring

• Replace

19 - 9 Nm

20 - Left coolant line

• Removing and installing → Left Coolant Pipe, Removing and Installing

21 - Lower left coolant pipe

• Removing and installing → Lower Left Coolant Pipe, Removing and Installing

22 - 9 Nm

23 - 9 Nm

24 - Coolant hose

• To coolant regulator housing

25 - O-rings

• Replace

26 - 8 Nm plus an additional 90 (¹ /₄ turn)

• Replace

27 - Drain plug - 10 Nm

28 - Seal

• Replace
