Engine, Installing

WARNING: This page is about a different car, the 2011 Audi A6 and 2010 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

Tightening Specifications

NOTE:

Tightening specifications only apply to lightly greased, oiled, phosphated or blackened nuts and bolts.

Additional lubricants, such as engine or transmission oil are permissible, although lubricants containing graphite are not.

Do not use any degreased parts.

Tolerance for torque specifications ±15%.

Component		Nm
Bolts/nuts	M6	9
	M7	15
	M8	20
	M10	40
	M12	65
Exceptions:
Hose clamps 9 mm wide		3
Hose clamps 13 mm wide		5.5

Subframe mount. Refer to SUBFRAME MOUNT OVERVIEW .

Fig 1: Identifying Ground Pins & Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nut -1- on the positive terminal grip to 20 Nm.

-- Tighten the Ground (GND) bolt -2- to 9 Nm.

Fig 2: Ground (GND) Strap From Right Longitudinal Member, Removing/Installing

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nut -1- to 15 Nm.

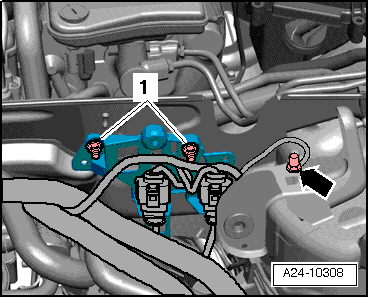

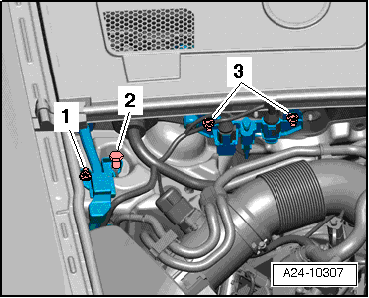

Fig 3: Removing/Installing Nut And Left Electrical Connectors Bracket From Bulkhead & Ground (GND) Wire From Left Strut Tower

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nut -arrow- to 9 Nm.

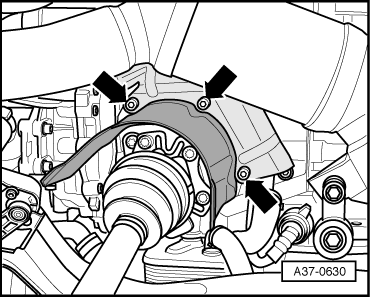

Fig 4: Driveshaft Heat Shaft

Courtesy of AUDI OF AMERICA, LLC

-- Tighten bolts -arrows- to 23 Nm.

Mount, Multitronic Transmission to Engine

Fig 5: Multitronic Transmission To Engine Fasteners And Alignment Sleeves -A- (3.2L, Engine Code CALA)

Courtesy of AUDI OF AMERICA, LLC

Item	Bolt ¹⁾	Nm
1, 7	M10x100	65 ²⁾
2	M12x120	65
3, 5	M12x100	65
4, 6	M12x95	65
8, 9, 10	M10x70	45
A	Alignment sleeves for centering
¹⁾ Replace the bolts that connect the transmission to the engine. ²⁾ Bolt class 10.9.

Procedure

NOTE:

Replace bolts which have been tightened to torque.

Replace self-locking nuts and bolts as well as sealing rings, seals and O-rings.

Secure all hose connections with hose clamps appropriate for the model. Refer to parts .

During installation, all cable ties must be re-installed at the same location.

-- Clean the transmission input shaft splines and damper unit splines on the flywheel, remove corrosion and apply a very thin coating of Clutch Disc Connection LubricantG 000 100 on the splines. Remove all excess grease.

-- Make sure the alignment sleeves -A- for centering the engine and transmission in the cylinder block are present. Insert the alignment sleeves if they are missing.

Fig 6: Identifying Engine/Transmission Threaded Connections

Courtesy of AUDI OF AMERICA, LLC

-- Install intermediate plate between engine and transmission onto alignment bushings.

-- Install the transmission on the engine using new bolts.

-- Secure the ATF pipes. Refer to ATF PIPES, ATF COOLER AND ATF ADDITIONAL FILTER OVERVIEW .

-- Install the front exhaust pipe and catalytic converter: for the left pipe, refer to LEFT FRONT EXHAUST PIPE WITH CATALYTIC CONVERTER , and for the right pipe, refer to RIGHT EXHAUST PIPE WITH CATALYTIC CONVERTER .

-- Lower the left support element spindles on the engine/transmission subassembly.

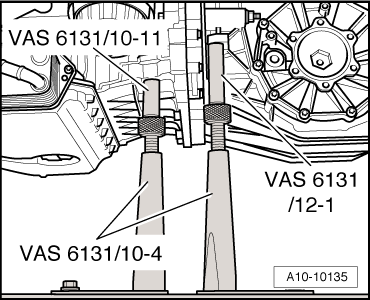

Fig 7: Positioning/Removing Support Elements From VAS 6131/10 And VAS 6131/12 At Left On Engine

Courtesy of AUDI OF AMERICA, LLC

-- Loosen both right support element base plates on the VAS 6131 A.

-- Lower the right support element spindles on the engine/transmission subassembly.

Fig 8: Removing Both Base Plates For Right Support Element On Scissor Lift Table VAS 6131 A

Courtesy of AUDI OF AMERICA, LLC

-- Loosen both right support element base plates on the VAS 6131 A.

NOTE:

The support points for front of engine and tunnel cross member remain unchanged.

-- Set up the VAS 6131 A and VAS 6131/10 as follows:

Fig 9: Identifying Scissor Lift Platform VAS 6131

Courtesy of AUDI OF AMERICA, LLC

Platform Coordinates	Parts of Support Set for Audi VAS 6131/10
B4 ¹⁾	/10-1	/10-4	/10-5	/10-13
G4 ¹⁾	/10-1	/10-4	/10-5	/10-12
B10	/10-1	/10-2	/10-5	/10-8 ²⁾
G10	/10-1	/10-2	/10-5	/10-8 ²⁾
E13 ¹⁾	/10-1	/10-3	/10-5	/10-6
D16 ¹⁾	/10-1	/10-3	/10-5	/10-6
¹⁾ The support elements remain unchanged. ²⁾ Only install support elements after installing subframe.

NOTE:

A second technician is required to position subframe onto support elements.

-- Mount the subframe on both support elements VAS 6131/10-8.

Fig 10: Positioning Support Elements From Support Set VAS 6131/10 At Left/Right On Subframe

Courtesy of AUDI OF AMERICA, LLC

-- Rotate the VAS 6131/10-8 on both sides up.

-- Attach mounting element base plates to VAS 6131 A and tighten to 20 Nm.

-- Slowly guide the engine/transmission subassembly and the subframe using the VAS 6131 A from underneath into the body.

-- Align the subframe and engine mount brackets using the marks made on the longitudinal members during removal.

Fig 11: Locating Subframe And Engine Mount Brackets Bolts 1 Through 4

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the subframe bolts and engine mount brackets only to the tightening specifications, do not tighten them further (tighten the bolts only after axle alignment). Refer to SUBFRAME .

WARNING:

Risk of accident due to loose connections.

If the bolts in the subframe are not tightened to final torque, vehicle must not be driven.

-- Tighten the tunnel crossmember bolts. Refer to TUNNEL CROSSMEMBER .

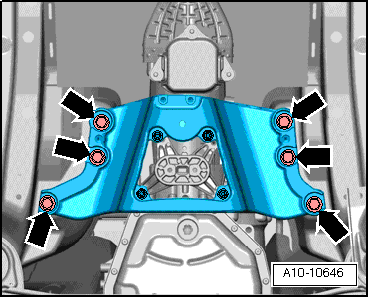

Fig 12: Removing/Installing Bolts At Tunnel Cross Member

Courtesy of AUDI OF AMERICA, LLC

The rest of the installation is performed in reverse order of removal, note the following:

-- Install the selector lever cable to the transmission. Refer to SELECTOR LEVER CABLE .

-- Install the drive axles, guide links, control arms, stabilizer bars, coupling rods, suspension struts and the subframe crossbrace. Refer to REMOVAL AND INSTALLATION .

-- Install the front transverse beam. Refer to TRANSVERSE SUPPORT (DOME BRACE) .

-- Install exhaust system free of stress. Refer to EXHAUST SYSTEM, INSTALLING .

-- Install Air Conditioning (A/C) compressor. Refer to COMPRESSOR WITH PULLEY, REMOVING AND INSTALLING AT BRACKET .

-- Install the power steering pump hydraulic line. Refer to POWER STEERING PUMP, HYDRAULIC LINES AND RESERVOIR OVERVIEW .

-- Install the fuel supply hose. Refer to Fuel Pressure and Residual Pressure before High Pressure Pump, Checking .

-- Install ribbed belt. Refer to RIBBED BELT .

-- Install the torque support. Refer to TORQUE SUPPORT .

-- Electrical connections and routing. Refer to appropriate SYSTEM WIRING DIAGRAM.

-- Follow measures after connecting battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .

CAUTION:

Risk of destroying control modules with excess voltage.

Do not use a battery charger for starting assistance!

-- Install wiper arms and adjust. Refer to WIPER ARM .

-- Install the tower brace. Refer to TOWER BRACE .

-- Check oil level. Refer to the ENGINE, CHECKING OIL LEVEL .

-- Before starting the engine for the first time, check the fluid level in power steering reservoir. Refer to POWER STEERING FLUID, CHECKING .

NOTE:

The power steering pump must not run dry.

-- Fuel system, bleeding. Refer to Fuel Pressure and Residual Pressure before High Pressure Pump, Checking .

-- Connect the coolant hoses with the connector coupling. Refer to Fig 13.

Fig 13: Connecting Coolant Hose Coupling

Courtesy of AUDI OF AMERICA, LLC

-- Fill with coolant COOLING SYSTEM, DRAINING AND FILLING .

NOTE:

Do not use drained coolant in the following situations:

If the cylinder head or cylinder block was replaced.

If the coolant is contaminated.

-- Check ATF level. Refer to ATF LEVEL, CHECKING AND CORRECTING .

-- Align the subframe and both engine mount brackets. Refer to Removal and Installation .

-- Perform axle alignment. Refer to AXLE ALIGNMENT CONTROL POSITION, WITH AIR SPRING SUSPENSION, CHECKING .

WARNING:

Risk of accident due to loose connections.

Tighten subframe bolts to final torque after axle alignment.

-- Install the noise insulation. Refer to NOISE INSULATION OVERVIEW .
