Level Control Pump Temperature Sensor: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2011 Audi A6, 2010 Audi A6, 2009 Audi A6, 2008 Audi A6, and 2007 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

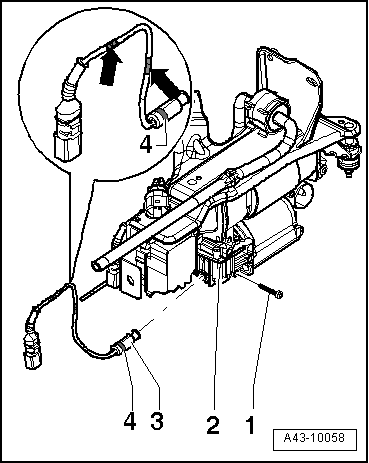

Fig 1: Identifying Bolt, O-Rings, Housing, And Level Control Pump Temperature Sensor

Courtesy of AUDI OF AMERICA, LLC

-- Coat the O-rings -4- with the supplied grease.

-- Install the level control pump temperature sensor -3- into the housing -2- all the way.

-- Install the bolt -1- and tighten to specified tightening specification. Refer to AIR SUPPLY UNIT AND SOLENOID VALVE BLOCK OVERVIEW .

-- Connect the connector -2- and secure the electrical wire.

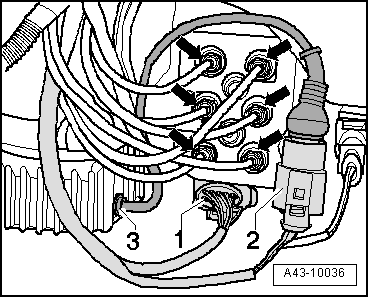

Fig 2: Identifying Harness Connector And Air Lines

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Secure the electrical wire only on the marked locations -arrows-.

Fig 3: Identifying Bolt, O-Rings, Housing, And Level Control Pump Temperature Sensor

Courtesy of AUDI OF AMERICA, LLC

-- Install noise insulation. Refer to NOISE INSULATION OVERVIEW .

-- Install the right front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER .

-- Install wheel.

-- Place vehicle on wheels. Refer to POSITIONING VEHICLE ON HOIST AND WHEELS .

-- Tighten wheel. Refer to WHEELS AND TIRES .
