Front Information Display Control Head Control Module Through August 2008: Removing

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT .

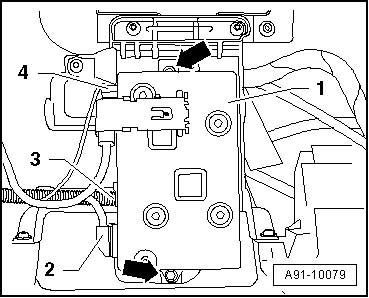

-- Disconnect connectors -2-, -3- and -4- on the front information display control head control module -1-.

Fig 1: Identifying Connectors on Front Information Display Control Head Control Module J523

Courtesy of AUDI OF AMERICA, LLC

-- Attach the VAS 6223/9 -1- onto the MOST-Bus connector -2-.

Fig 2: Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of AUDI OF AMERICA, LLC

-- Remove screws -arrows- (3 Nm) and remove front information display control head control module -1-.

Fig 3: Identifying Connectors on Front Information Display Control Head Control Module J523

Courtesy of AUDI OF AMERICA, LLC
